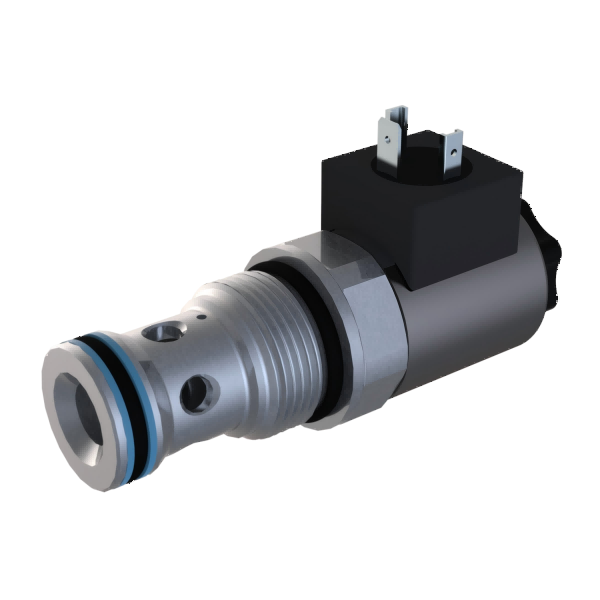

Q_PPM33 比例2通流量控制插装阀 # WANDFLUH // 万福乐


Q_PPM33

比例2通流量控制插装阀（滑动线圈）

Description

直接控制，负载补偿的比例流量控制阀，为符合ISO7789标准的旋入式阀芯。 当电磁铁断电时，控制阀芯被弹簧固定在关闭（QN）或打开（QO）位置。电流的变化伴随着体积流量的比例变化。介质从入口（1）经控制和节流活塞流向受控出口（2）。Wandfluh比例放大器可用于控制（见寄存器1.13）。

Application

比例流量控制阀适用于精确的速度控制，在这种情况下，无论入口和出口压力如何，用户流量必须保持恒定。旋入式滤芯非常适用于安装在控制块中，并安装在夹层（垂直堆叠）和法兰盘中（本册中的相应数据表）。可使用阶梯工具在钢块和铝块上制作滤芯安装孔（租用或购买）。请参考寄存器2.13中的数据表。

Key facts

比例2路电流控制盒

  • 直接控制的，负载补偿的

  • Qmax = 80 l/min

  • QN max =80 l/min

  • pmax = 350 bar

QNPPM33-32-G12/WD-__«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRArmature tube closed (standard)
QNPPM33-32-G12/WD-_HB0«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRScrew plug
QNPPM33-32-G12/WD-_HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBRManual override
QNPPM33-32-G12/WD-D1_«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Armature tube closed (standard)
QNPPM33-32-G12/WD-D1HB0«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Screw plug
QNPPM33-32-G12/WD-D1HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)Manual override
QNPPM33-32-G12/WJ-__«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerNBRArmature tube closed (standard)
QNPPM33-32-G12/WJ-_HB0«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerNBRScrew plug
QNPPM33-32-G12/WJ-_HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerNBRManual override
QNPPM33-32-G12/WJ-D1_«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Armature tube closed (standard)
QNPPM33-32-G12/WJ-D1HB0«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Screw plug
QNPPM33-32-G12/WJ-D1HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)Manual override
QNPPM33-32-G12/WG-__«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PNBRArmature tube closed (standard)
QNPPM33-32-G12/WG-_HB0«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PNBRScrew plug
QNPPM33-32-G12/WG-_HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PNBRManual override
QNPPM33-32-G12/WG-D1_«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Armature tube closed (standard)
QNPPM33-32-G12/WG-D1HB0«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Screw plug
QNPPM33-32-G12/WG-D1HB4.5«normally closed»32 l/min12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)Manual override
QNPPM33-32-G12/MD-__«normally closed»32 l/min12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRArmature tube closed (standard)
QNPPM33-32-G12/MD-_HB0«normally closed»32 l/min12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBRScrew plug
