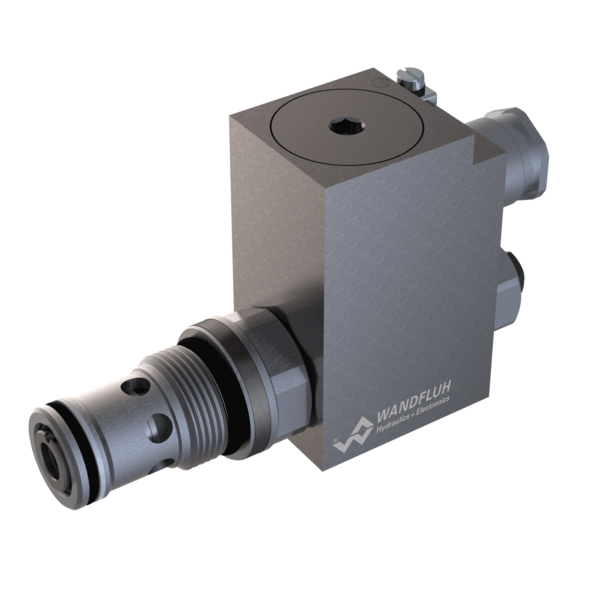

QNBPM33 防爆比例2通流量控制插装阀 # WANDFLUH // 万福乐


QNBPM33

防爆比例2通流量控制插装阀

Description

直接控制，负载补偿的比例流量控制阀，是符合ISO7789标准的旋入式阀芯。 当电磁铁断电时，控制活塞关闭时几乎无泄漏。电流的变化伴随着体积流量的比例变化。介质从入口（1）经控制和节流活塞流向受控出口（2）。防爆封装的电磁线圈可以防止内部的爆炸逃到外面，也可以防止可燃的表面温度。

Application

比例流量控制阀适用于精确的速度控制，在这种情况下，无论入口和出口压力如何，用户流量必须保持恒定。这些阀门适合在危险地区、地面上使用，也适合在采矿业使用。旋入式滤芯非常适用于安装在控制块中。可使用阶梯工具在钢块和铝块上制作滤芯安装孔（租用或购买）。请参考寄存器2.13中的数据表。

Key facts

比例2路电流控制盒

  • 直接控制的，负载补偿的

  • Qmax = 70 l/min

  • QN max=55 l/min

  • pmax = 350 bar

QNBPM33-50-G12/L15/AU-D1-_12 VDC15WAustraliaFKM (Viton)_
QNBPM33-50-G12/L15/AU-D1-M24812 VDC15WAustraliaFKM (Viton)M248
QNBPM33-50-G12/L15/AU-Z604-_12 VDC15WAustralia-40°C to ..._
QNBPM33-50-G12/L15/AU-Z604-M24812 VDC15WAustralia-40°C to ...M248
QNBPM33-50-G12/L15/IM-D1-_12 VDC15WInmetroFKM (Viton)_
QNBPM33-50-G12/L15/IM-D1-M24812 VDC15WInmetroFKM (Viton)M248
QNBPM33-50-G12/L15/IM-Z604-_12 VDC15WInmetro-40°C to ..._
QNBPM33-50-G12/L15/IM-Z604-M24812 VDC15WInmetro-40°C to ...M248
QNBPM33-50-G12/L15/NP-D1-_12 VDC15WNEPSIFKM (Viton)_
QNBPM33-50-G12/L15/NP-D1-M24812 VDC15WNEPSIFKM (Viton)M248
QNBPM33-50-G12/L15/NP-Z604-_12 VDC15WNEPSI-40°C to ..._
QNBPM33-50-G12/L15/NP-Z604-M24812 VDC15WNEPSI-40°C to ...M248
QNBPM33-50-G12/L15/UL-D1-_12 VDC15WUL/CSAFKM (Viton)_
QNBPM33-50-G12/L15/UL-D1-M24812 VDC15WUL/CSAFKM (Viton)M248
QNBPM33-50-G12/L15/UL-Z604-_12 VDC15WUL/CSA-40°C to ..._
QNBPM33-50-G12/L15/UL-Z604-M24812 VDC15WUL/CSA-40°C to ...M248
QNBPM33-50-G12/L15/MA-D1-_12 VDC15WMAFKM (Viton)_
QNBPM33-50-G12/L15/MA-D1-M24812 VDC15WMAFKM (Viton)M248
QNBPM33-50-G12/L15/MA-Z604-_12 VDC15WMA-40°C to ..._
QNBPM33-50-G12/L15/MA-Z604-M24812 VDC15WMA-40°C to ...M248
QNBPM33-50-G12/L17/AU-D1-_12 VDC17WAustraliaFKM (Viton)_
QNBPM33-50-G12/L17/AU-D1-M24812 VDC17WAustraliaFKM (Viton)M248
QNBPM33-50-G12/L17/AU-Z604-_12 VDC17WAustralia-40°C to ..._
QNBPM33-50-G12/L17/AU-Z604-M24812 VDC17WAustralia-40°C to ...M248
QNBPM33-50-G12/L17/IM-D1-_12 VDC17WInmetroFKM (Viton)_
QNBPM33-50-G12/L17/IM-D1-M24812 VDC17WInmetroFKM (Viton)M248
QNBPM33-50-G12/L17/IM-Z604-_12 VDC17WInmetro-40°C to ..._
QNBPM33-50-G12/L17/IM-Z604-M24812 VDC17WInmetro-40°C to ...M248
QNBPM33-50-G12/L17/NP-D1-_12 VDC17WNEPSIFKM (Viton)_
QNBPM33-50-G12/L17/NP-D1-M24812 VDC17WNEPSIFKM (Viton)M248
QNBPM33-50-G12/L17/NP-Z604-_12 VDC17WNEPSI-40°C to ..._
QNBPM33-50-G12/L17/NP-Z604-M24812 VDC17WNEPSI-40°C to ...M248
QNBPM33-50-G12/L17/UL-D1-_12 VDC17WUL/CSAFKM (Viton)_
QNBPM33-50-G12/L17/UL-D1-M24812 VDC17WUL/CSAFKM (Viton)M248
QNBPM33-50-G12/L17/UL-Z604-_12 VDC17WUL/CSA-40°C to ..._
QNBPM33-50-G12/L17/UL-Z604-M24812 VDC17WUL/CSA-40°C to ...M248
QNBPM33-50-G12/L17/MA-D1-_12 VDC17WMAFKM (Viton)_
QNBPM33-50-G12/L17/MA-D1-M24812 VDC17WMAFKM (Viton)M248
QNBPM33-50-G12/L17/MA-Z604-_12 VDC17WMA-40°C to ..._
QNBPM33-50-G12/L17/MA-Z604-M24812 VDC17WMA-40°C to ...M248
QNBPM33-50-G24/L15/AU-D1-_24 VDC15WAustraliaFKM (Viton)_
QNBPM33-50-G24/L15/AU-D1-M24824 VDC15WAustraliaFKM (Viton)M248
QNBPM33-50-G24/L15/AU-Z604-_24 VDC15WAustralia-40°C to ..._
QNBPM33-50-G24/L15/AU-Z604-M24824 VDC15WAustralia-40°C to ...M248
QNBPM33-50-G24/L15/IM-D1-_24 VDC15WInmetroFKM (Viton)_
QNBPM33-50-G24/L15/IM-D1-M24824 VDC15WInmetroFKM (Viton)M248
QNBPM33-50-G24/L15/IM-Z604-_24 VDC15WInmetro-40°C to ..._
QNBPM33-50-G24/L15/IM-Z604-M24824 VDC15WInmetro-40°C to ...M248
QNBPM33-50-G24/L15/NP-D1-_24 VDC15WNEPSIFKM (Viton)_
QNBPM33-50-G24/L15/NP-D1-M24824 VDC15WNEPSIFKM (Viton)M248
QNBPM33-50-G24/L15/NP-Z604-_24 VDC15WNEPSI-40°C to ..._
QNBPM33-50-G24/L15/NP-Z604-M24824 VDC15WNEPSI-40°C to ...M248
QNBPM33-50-G24/L15/UL-D1-_24 VDC15WUL/CSAFKM (Viton)_
QNBPM33-50-G24/L15/UL-D1-M24824 VDC15WUL/CSAFKM (Viton)M248
QNBPM33-50-G24/L15/UL-Z604-_24 VDC15WUL/CSA-40°C to ..._
QNBPM33-50-G24/L15/UL-Z604-M24824 VDC15WUL/CSA-40°C to ...M248
QNBPM33-50-G24/L15/MA-D1-_24 VDC15WMAFKM (Viton)_
QNBPM33-50-G24/L15/MA-D1-M24824 VDC15WMAFKM (Viton)M248
QNBPM33-50-G24/L15/MA-Z604-_24 VDC15WMA-40°C to ..._
QNBPM33-50-G24/L15/MA-Z604-M24824 VDC15WMA-40°C to ...M248
QNBPM33-50-G24/L17/AU-D1-_24 VDC17WAustraliaFKM (Viton)_
QNBPM33-50-G24/L17/AU-D1-M24824 VDC17WAustraliaFKM (Viton)M248
QNBPM33-50-G24/L17/AU-Z604-_24 VDC17WAustralia-40°C to ..._
QNBPM33-50-G24/L17/AU-Z604-M24824 VDC17WAustralia-40°C to ...M248
QNBPM33-50-G24/L17/IM-D1-_24 VDC17WInmetroFKM (Viton)_
QNBPM33-50-G24/L17/IM-D1-M24824 VDC17WInmetroFKM (Viton)M248
QNBPM33-50-G24/L17/IM-Z604-_24 VDC17WInmetro-40°C to ..._
QNBPM33-50-G24/L17/IM-Z604-M24824 VDC17WInmetro-40°C to ...M248
QNBPM33-50-G24/L17/NP-D1-_24 VDC17WNEPSIFKM (Viton)_
QNBPM33-50-G24/L17/NP-D1-M24824 VDC17WNEPSIFKM (Viton)M248
QNBPM33-50-G24/L17/NP-Z604-_24 VDC17WNEPSI-40°C to ..._
QNBPM33-50-G24/L17/NP-Z604-M24824 VDC17WNEPSI-40°C to ...M248
QNBPM33-50-G24/L17/UL-D1-_24 VDC17WUL/CSAFKM (Viton)_
QNBPM33-50-G24/L17/UL-D1-M24824 VDC17WUL/CSAFKM (Viton)M248
QNBPM33-50-G24/L17/UL-Z604-_24 VDC17WUL/CSA-40°C to ..._
QNBPM33-50-G24/L17/UL-Z604-M24824 VDC17WUL/CSA-40°C to ...M248
QNBPM33-50-G24/L17/MA-D1-_24 VDC17WMAFKM (Viton)_
QNBPM33-50-G24/L17/MA-D1-M24824 VDC17WMAFKM (Viton)M248
QNBPM33-50-G24/L17/MA-Z604-_24 VDC17WMA-40°C to ..._
QNBPM33-50-G24/L17/MA-Z604-M24824 VDC17WMA-40°C to ...M248
