QNPPM33_ME

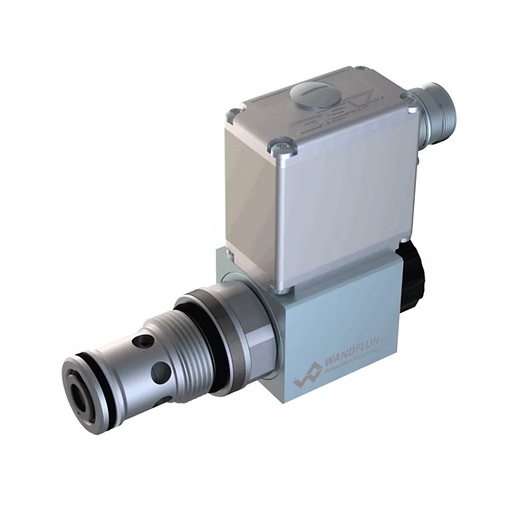

比例2通流量控制插装阀（滑动线圈、集成电子元件）

Description

直接控制，负载补偿的比例流量控制阀，为符合ISO7789标准的旋入式阀芯。 当电磁铁断电时，控制活塞被弹簧固定在关闭位置。电流的变化伴随着体积流量的比例变化。介质从输入端（1）经控制和节流活塞流向受控输出端（2）。控制是通过模拟接口或现场总线接口（CANopen、J1939或Profibus DP）。参数化是通过免费的参数化和诊断软件 "PASO "或通过现场总线接口进行的。Wandfluh比例放大器可用于控制（见寄存器1.13）。

Application

带有集成电子装置的比例流量控制阀是必须经常改变体积流量的高要求任务的理想选择。它们被用于对低系列分散、简单安装、方便操作和最大精度非常重要的地方。集成的控制器解除了机器的控制，并在一个闭合的控制回路中操作体积流量控制。有步骤工具可用于在钢和铝块上制作滤芯安装孔（租赁或购买）。请参考寄存器2.13中的数据表。

Key facts

带有集成电子装置的比例式2路流量控制盒

• 直接控制

• Qmax = 63 l/min

• QN max=63 l/min

• pmax = 350 bar

• Product Options

  QNPPM33-32-G12/MEA1-__	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
  QNPPM33-32-G12/MEA1-_HB0	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
  QNPPM33-32-G12/MEA1-_HB4.5	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
  QNPPM33-32-G12/MEA1-D1_	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G12/MEA1-D1HB0	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
  QNPPM33-32-G12/MEA1-D1HB4.5	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
  QNPPM33-32-G12/MEC1-__	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
  QNPPM33-32-G12/MEC1-_HB0	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
  QNPPM33-32-G12/MEC1-_HB4.5	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
  QNPPM33-32-G12/MEC1-D1_	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G12/MEC1-D1HB0	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
  QNPPM33-32-G12/MEC1-D1HB4.5	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
  QNPPM33-32-G12/MEP1-__	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
  QNPPM33-32-G12/MEP1-_HB0	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
  QNPPM33-32-G12/MEP1-_HB4.5	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
  QNPPM33-32-G12/MEP1-D1_	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G12/MEP1-D1HB0	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
  QNPPM33-32-G12/MEP1-D1HB4.5	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
  QNPPM33-32-G12/MEJ1-__	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
  QNPPM33-32-G12/MEJ1-_HB0	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
  QNPPM33-32-G12/MEJ1-_HB4.5	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
  QNPPM33-32-G12/MEJ1-D1_	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G12/MEJ1-D1HB0	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
  QNPPM33-32-G12/MEJ1-D1HB4.5	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
  QNPPM33-32-G24/MEA1-__	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
  QNPPM33-32-G24/MEA1-_HB0	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
  QNPPM33-32-G24/MEA1-_HB4.5	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
  QNPPM33-32-G24/MEA1-D1_	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G24/MEA1-D1HB0	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
  QNPPM33-32-G24/MEA1-D1HB4.5	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
  QNPPM33-32-G24/MEC1-__	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
  QNPPM33-32-G24/MEC1-_HB0	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
  QNPPM33-32-G24/MEC1-_HB4.5	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
  QNPPM33-32-G24/MEC1-D1_	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G24/MEC1-D1HB0	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
  QNPPM33-32-G24/MEC1-D1HB4.5	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
  QNPPM33-32-G24/MEP1-__	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
  QNPPM33-32-G24/MEP1-_HB0	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
  QNPPM33-32-G24/MEP1-_HB4.5	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
  QNPPM33-32-G24/MEP1-D1_	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G24/MEP1-D1HB0	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
  QNPPM33-32-G24/MEP1-D1HB4.5	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
  QNPPM33-32-G24/MEJ1-__	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
  QNPPM33-32-G24/MEJ1-_HB0	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
  QNPPM33-32-G24/MEJ1-_HB4.5	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
  QNPPM33-32-G24/MEJ1-D1_	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-32-G24/MEJ1-D1HB0	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
  QNPPM33-32-G24/MEJ1-D1HB4.5	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
  QNPPM33-63-G12/MEA1-__	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
  QNPPM33-63-G12/MEA1-_HB0	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
  QNPPM33-63-G12/MEA1-_HB4.5	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
  QNPPM33-63-G12/MEA1-D1_	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G12/MEA1-D1HB0	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
  QNPPM33-63-G12/MEA1-D1HB4.5	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
  QNPPM33-63-G12/MEC1-__	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
  QNPPM33-63-G12/MEC1-_HB0	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
  QNPPM33-63-G12/MEC1-_HB4.5	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
  QNPPM33-63-G12/MEC1-D1_	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G12/MEC1-D1HB0	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
  QNPPM33-63-G12/MEC1-D1HB4.5	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
  QNPPM33-63-G12/MEP1-__	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
  QNPPM33-63-G12/MEP1-_HB0	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
  QNPPM33-63-G12/MEP1-_HB4.5	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
  QNPPM33-63-G12/MEP1-D1_	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G12/MEP1-D1HB0	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
  QNPPM33-63-G12/MEP1-D1HB4.5	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
  QNPPM33-63-G12/MEJ1-__	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
  QNPPM33-63-G12/MEJ1-_HB0	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
  QNPPM33-63-G12/MEJ1-_HB4.5	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
  QNPPM33-63-G12/MEJ1-D1_	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G12/MEJ1-D1HB0	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
  QNPPM33-63-G12/MEJ1-D1HB4.5	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
  QNPPM33-63-G24/MEA1-__	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
  QNPPM33-63-G24/MEA1-_HB0	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
  QNPPM33-63-G24/MEA1-_HB4.5	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
  QNPPM33-63-G24/MEA1-D1_	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G24/MEA1-D1HB0	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
  QNPPM33-63-G24/MEA1-D1HB4.5	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
  QNPPM33-63-G24/MEC1-__	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
  QNPPM33-63-G24/MEC1-_HB0	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
  QNPPM33-63-G24/MEC1-_HB4.5	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
  QNPPM33-63-G24/MEC1-D1_	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G24/MEC1-D1HB0	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
  QNPPM33-63-G24/MEC1-D1HB4.5	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
  QNPPM33-63-G24/MEP1-__	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
  QNPPM33-63-G24/MEP1-_HB0	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
  QNPPM33-63-G24/MEP1-_HB4.5	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
  QNPPM33-63-G24/MEP1-D1_	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G24/MEP1-D1HB0	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
  QNPPM33-63-G24/MEP1-D1HB4.5	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
  QNPPM33-63-G24/MEJ1-__	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
  QNPPM33-63-G24/MEJ1-_HB0	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
  QNPPM33-63-G24/MEJ1-_HB4.5	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
  QNPPM33-63-G24/MEJ1-D1_	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
  QNPPM33-63-G24/MEJ1-D1HB0	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
  QNPPM33-63-G24/MEJ1-D1HB4.5	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
