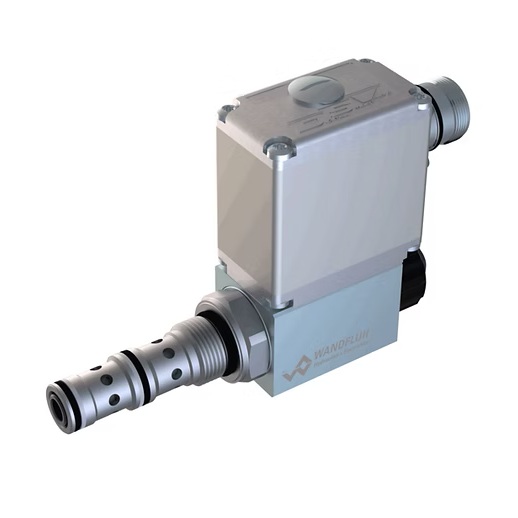

QDPPM33_ME 比例3通流量控制插装阀 # WANDFLUH // 万福乐


QDPPM33_ME

比例3通流量控制插装阀（滑动线圈、集成电子元件）

Description

直接控制的负载补偿比例流量控制阀，集成了电子装置，是符合ISO7789标准的腔体螺纹M33x2的旋入式插装阀。即插即用的阀门在工厂进行了设置和校准，因此具有最低的系列散布。由于电子元件具有IP67保护，这些阀门适用于恶劣的环境条件。有两种公称容积流量可供选择。体积流量由Wandfluh比例电磁铁（VDE标准0580）调节。几乎线性的体积流量增加和低滞后是这些阀门的特点。钢制的筒体和螺线管经过镀锌处理，因此有防锈保护。电子外壳是由铝制成的。

Application

比例流量阀适用于精确的进料控制，在这种情况下，用户流量必须在变化的负载下保持恒定。它们被用于对低系列分散、简单安装、方便操作和最大精度非常重要的地方。应用于工业和移动液压系统。旋入式阀芯非常适用于安装在控制块以及NG10的法兰和夹层阀中。可使用阶梯工具来制作滤芯安装孔（租用或购买）。请参考我们文件第2.13条中的数据表。

Key facts

比例式三通流量调节阀拧入式滤芯类型

集成式放大器电子装置
直接操作，负载补偿
Qmax = 100 l/min, pmax = 350 bar
QN max=63 l/min

QDPPM33-32-G12/MEA1-__	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QDPPM33-32-G12/MEA1-_HB0	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QDPPM33-32-G12/MEA1-_HB4.5	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QDPPM33-32-G12/MEA1-D1_	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G12/MEA1-D1HB0	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QDPPM33-32-G12/MEA1-D1HB4.5	32 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QDPPM33-32-G12/MEC1-__	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QDPPM33-32-G12/MEC1-_HB0	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QDPPM33-32-G12/MEC1-_HB4.5	32 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QDPPM33-32-G12/MEC1-D1_	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G12/MEC1-D1HB0	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QDPPM33-32-G12/MEC1-D1HB4.5	32 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QDPPM33-32-G12/MEP1-__	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QDPPM33-32-G12/MEP1-_HB0	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QDPPM33-32-G12/MEP1-_HB4.5	32 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QDPPM33-32-G12/MEP1-D1_	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G12/MEP1-D1HB0	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QDPPM33-32-G12/MEP1-D1HB4.5	32 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QDPPM33-32-G12/MEJ1-__	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QDPPM33-32-G12/MEJ1-_HB0	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QDPPM33-32-G12/MEJ1-_HB4.5	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QDPPM33-32-G12/MEJ1-D1_	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G12/MEJ1-D1HB0	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QDPPM33-32-G12/MEJ1-D1HB4.5	32 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QDPPM33-32-G24/MEA1-__	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QDPPM33-32-G24/MEA1-_HB0	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QDPPM33-32-G24/MEA1-_HB4.5	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QDPPM33-32-G24/MEA1-D1_	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G24/MEA1-D1HB0	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QDPPM33-32-G24/MEA1-D1HB4.5	32 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QDPPM33-32-G24/MEC1-__	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QDPPM33-32-G24/MEC1-_HB0	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QDPPM33-32-G24/MEC1-_HB4.5	32 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QDPPM33-32-G24/MEC1-D1_	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G24/MEC1-D1HB0	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QDPPM33-32-G24/MEC1-D1HB4.5	32 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QDPPM33-32-G24/MEP1-__	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QDPPM33-32-G24/MEP1-_HB0	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QDPPM33-32-G24/MEP1-_HB4.5	32 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QDPPM33-32-G24/MEP1-D1_	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G24/MEP1-D1HB0	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QDPPM33-32-G24/MEP1-D1HB4.5	32 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QDPPM33-32-G24/MEJ1-__	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QDPPM33-32-G24/MEJ1-_HB0	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QDPPM33-32-G24/MEJ1-_HB4.5	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QDPPM33-32-G24/MEJ1-D1_	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QDPPM33-32-G24/MEJ1-D1HB0	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QDPPM33-32-G24/MEJ1-D1HB4.5	32 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QDPPM33-63-G12/MEA1-__	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QDPPM33-63-G12/MEA1-_HB0	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QDPPM33-63-G12/MEA1-_HB4.5	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QDPPM33-63-G12/MEA1-D1_	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G12/MEA1-D1HB0	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QDPPM33-63-G12/MEA1-D1HB4.5	63 l/min	12 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QDPPM33-63-G12/MEC1-__	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QDPPM33-63-G12/MEC1-_HB0	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Screw plug
QDPPM33-63-G12/MEC1-_HB4.5	63 l/min	12 VDC	With CANopen according to DSP-408	NBR	Manual override
QDPPM33-63-G12/MEC1-D1_	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G12/MEC1-D1HB0	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QDPPM33-63-G12/MEC1-D1HB4.5	63 l/min	12 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QDPPM33-63-G12/MEP1-__	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QDPPM33-63-G12/MEP1-_HB0	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Screw plug
QDPPM33-63-G12/MEP1-_HB4.5	63 l/min	12 VDC	With CAN J1939 (on request)	NBR	Manual override
QDPPM33-63-G12/MEP1-D1_	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G12/MEP1-D1HB0	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QDPPM33-63-G12/MEP1-D1HB4.5	63 l/min	12 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QDPPM33-63-G12/MEJ1-__	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QDPPM33-63-G12/MEJ1-_HB0	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QDPPM33-63-G12/MEJ1-_HB4.5	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QDPPM33-63-G12/MEJ1-D1_	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G12/MEJ1-D1HB0	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QDPPM33-63-G12/MEJ1-D1HB4.5	63 l/min	12 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
QDPPM33-63-G24/MEA1-__	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Armature tube closed (standard)
QDPPM33-63-G24/MEA1-_HB0	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Screw plug
QDPPM33-63-G24/MEA1-_HB4.5	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	NBR	Manual override
QDPPM33-63-G24/MEA1-D1_	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G24/MEA1-D1HB0	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Screw plug
QDPPM33-63-G24/MEA1-D1HB4.5	63 l/min	24 VDC	With analog command value signal (0…+10 V preadjusted)	FKM (Viton)	Manual override
QDPPM33-63-G24/MEC1-__	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Armature tube closed (standard)
QDPPM33-63-G24/MEC1-_HB0	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Screw plug
QDPPM33-63-G24/MEC1-_HB4.5	63 l/min	24 VDC	With CANopen according to DSP-408	NBR	Manual override
QDPPM33-63-G24/MEC1-D1_	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G24/MEC1-D1HB0	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Screw plug
QDPPM33-63-G24/MEC1-D1HB4.5	63 l/min	24 VDC	With CANopen according to DSP-408	FKM (Viton)	Manual override
QDPPM33-63-G24/MEP1-__	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Armature tube closed (standard)
QDPPM33-63-G24/MEP1-_HB0	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Screw plug
QDPPM33-63-G24/MEP1-_HB4.5	63 l/min	24 VDC	With CAN J1939 (on request)	NBR	Manual override
QDPPM33-63-G24/MEP1-D1_	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G24/MEP1-D1HB0	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Screw plug
QDPPM33-63-G24/MEP1-D1HB4.5	63 l/min	24 VDC	With CAN J1939 (on request)	FKM (Viton)	Manual override
QDPPM33-63-G24/MEJ1-__	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Armature tube closed (standard)
QDPPM33-63-G24/MEJ1-_HB0	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Screw plug
QDPPM33-63-G24/MEJ1-_HB4.5	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	NBR	Manual override
QDPPM33-63-G24/MEJ1-D1_	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Armature tube closed (standard)
QDPPM33-63-G24/MEJ1-D1HB0	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Screw plug
QDPPM33-63-G24/MEJ1-D1HB4.5	63 l/min	24 VDC	With Profibus DP according to Fluid Power Technology	FKM (Viton)	Manual override
