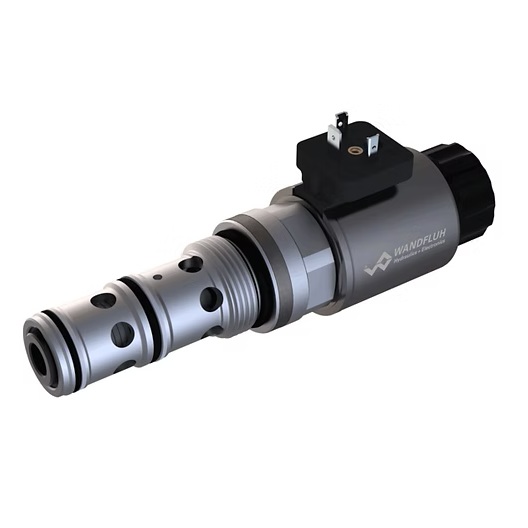

QDPPU16 比例3通流量控制插装阀 # WANDFLUH // 万福乐


QDPPU16

比例3通流量控制插装阀

Description

根据Wandfluh标准，直接控制、负载补偿的比例流量控制阀为螺纹15/16″-12UN的旋入式插装阀，用于腔体。有两种额定的体积流量可供选择。体积流量的调节是由一个Wandfluh比例电磁铁（VDE标准0580）完成的。盒体是由钢制成的。特殊的表面涂层保证了良好的腐蚀保护、磨损保护和非常好的滑动性能。保护以及压力补偿器和节气门活塞的非常好的滑动性能。电磁铁线圈有锌/镍涂层。

Application

比例流量阀适用于精确的进料控制，在这种情况下，用户流量必须在变化的负载下保持恒定。旋入式滤芯适用于安装在控制块中。

Key facts

比例式三通流量调节阀拧入式滤芯类型

直接操作，负载补偿
Qmax = 100 l/min, pmax = 350 bar
QN max=63 l/min

QDPPU16-32-G12/WD-__	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-G12/WD-_HB0	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-G12/WD-_HB4.5	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-G12/WD-D1_	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/WD-D1HB0	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-G12/WD-D1HB4.5	32 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-G12/WJ-__	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-G12/WJ-_HB0	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-G12/WJ-_HB4.5	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-G12/WJ-D1_	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/WJ-D1HB0	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-G12/WJ-D1HB4.5	32 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-G12/WG-__	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-G12/WG-_HB0	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-G12/WG-_HB4.5	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-G12/WG-D1_	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/WG-D1HB0	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-G12/WG-D1HB4.5	32 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-32-G12/MD-__	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-G12/MD-_HB0	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-G12/MD-_HB4.5	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-G12/MD-D1_	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/MD-D1HB0	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-G12/MD-D1HB4.5	32 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-G12/MJ-__	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-G12/MJ-_HB0	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-G12/MJ-_HB4.5	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-G12/MJ-D1_	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/MJ-D1HB0	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-G12/MJ-D1HB4.5	32 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-G12/MG-__	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-G12/MG-_HB0	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-G12/MG-_HB4.5	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-G12/MG-D1_	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G12/MG-D1HB0	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-G12/MG-D1HB4.5	32 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-32-G24/WD-__	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-G24/WD-_HB0	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-G24/WD-_HB4.5	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-G24/WD-D1_	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/WD-D1HB0	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-G24/WD-D1HB4.5	32 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-G24/WJ-__	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-G24/WJ-_HB0	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-G24/WJ-_HB4.5	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-G24/WJ-D1_	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/WJ-D1HB0	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-G24/WJ-D1HB4.5	32 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-G24/WG-__	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-G24/WG-_HB0	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-G24/WG-_HB4.5	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-G24/WG-D1_	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/WG-D1HB0	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-G24/WG-D1HB4.5	32 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-32-G24/MD-__	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-G24/MD-_HB0	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-G24/MD-_HB4.5	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-G24/MD-D1_	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/MD-D1HB0	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-G24/MD-D1HB4.5	32 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-G24/MJ-__	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-G24/MJ-_HB0	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-G24/MJ-_HB4.5	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-G24/MJ-D1_	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/MJ-D1HB0	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-G24/MJ-D1HB4.5	32 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-G24/MG-__	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-G24/MG-_HB0	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-G24/MG-_HB4.5	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-G24/MG-D1_	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-G24/MG-D1HB0	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-G24/MG-D1HB4.5	32 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-32-X5/WD-__	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-X5/WD-_HB0	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-X5/WD-_HB4.5	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-X5/WD-D1_	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/WD-D1HB0	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-X5/WD-D1HB4.5	32 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-X5/WJ-__	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-X5/WJ-_HB0	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-X5/WJ-_HB4.5	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-X5/WJ-D1_	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/WJ-D1HB0	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-X5/WJ-D1HB4.5	32 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-X5/WG-__	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-X5/WG-_HB0	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-X5/WG-_HB4.5	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-X5/WG-D1_	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/WG-D1HB0	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-X5/WG-D1HB4.5	32 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-32-X5/MD-__	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-32-X5/MD-_HB0	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-32-X5/MD-_HB4.5	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-32-X5/MD-D1_	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/MD-D1HB0	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-32-X5/MD-D1HB4.5	32 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-32-X5/MJ-__	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-32-X5/MJ-_HB0	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-32-X5/MJ-_HB4.5	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-32-X5/MJ-D1_	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/MJ-D1HB0	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-32-X5/MJ-D1HB4.5	32 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-32-X5/MG-__	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-32-X5/MG-_HB0	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-32-X5/MG-_HB4.5	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-32-X5/MG-D1_	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-32-X5/MG-D1HB0	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-32-X5/MG-D1HB4.5	32 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-G12/WD-__	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-G12/WD-_HB0	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-G12/WD-_HB4.5	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-G12/WD-D1_	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/WD-D1HB0	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-G12/WD-D1HB4.5	63 l/min	12 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-G12/WJ-__	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-G12/WJ-_HB0	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-G12/WJ-_HB4.5	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-G12/WJ-D1_	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/WJ-D1HB0	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-G12/WJ-D1HB4.5	63 l/min	12 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-G12/WG-__	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-G12/WG-_HB0	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-G12/WG-_HB4.5	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-G12/WG-D1_	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/WG-D1HB0	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-G12/WG-D1HB4.5	63 l/min	12 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-G12/MD-__	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-G12/MD-_HB0	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-G12/MD-_HB4.5	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-G12/MD-D1_	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/MD-D1HB0	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-G12/MD-D1HB4.5	63 l/min	12 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-G12/MJ-__	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-G12/MJ-_HB0	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-G12/MJ-_HB4.5	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-G12/MJ-D1_	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/MJ-D1HB0	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-G12/MJ-D1HB4.5	63 l/min	12 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-G12/MG-__	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-G12/MG-_HB0	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-G12/MG-_HB4.5	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-G12/MG-D1_	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G12/MG-D1HB0	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-G12/MG-D1HB4.5	63 l/min	12 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-G24/WD-__	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-G24/WD-_HB0	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-G24/WD-_HB4.5	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-G24/WD-D1_	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/WD-D1HB0	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-G24/WD-D1HB4.5	63 l/min	24 VDC	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-G24/WJ-__	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-G24/WJ-_HB0	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-G24/WJ-_HB4.5	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-G24/WJ-D1_	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/WJ-D1HB0	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-G24/WJ-D1HB4.5	63 l/min	24 VDC	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-G24/WG-__	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-G24/WG-_HB0	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-G24/WG-_HB4.5	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-G24/WG-D1_	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/WG-D1HB0	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-G24/WG-D1HB4.5	63 l/min	24 VDC	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-G24/MD-__	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-G24/MD-_HB0	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-G24/MD-_HB4.5	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-G24/MD-D1_	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/MD-D1HB0	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-G24/MD-D1HB4.5	63 l/min	24 VDC	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-G24/MJ-__	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-G24/MJ-_HB0	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-G24/MJ-_HB4.5	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-G24/MJ-D1_	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/MJ-D1HB0	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-G24/MJ-D1HB4.5	63 l/min	24 VDC	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-G24/MG-__	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-G24/MG-_HB0	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-G24/MG-_HB4.5	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-G24/MG-D1_	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-G24/MG-D1HB0	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-G24/MG-D1HB4.5	63 l/min	24 VDC	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-X5/WD-__	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-X5/WD-_HB0	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-X5/WD-_HB4.5	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-X5/WD-D1_	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/WD-D1HB0	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-X5/WD-D1HB4.5	63 l/min	without coil	Metal housing round	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-X5/WJ-__	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-X5/WJ-_HB0	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-X5/WJ-_HB4.5	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-X5/WJ-D1_	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/WJ-D1HB0	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-X5/WJ-D1HB4.5	63 l/min	without coil	Metal housing round	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-X5/WG-__	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-X5/WG-_HB0	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-X5/WG-_HB4.5	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-X5/WG-D1_	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/WG-D1HB0	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-X5/WG-D1HB4.5	63 l/min	without coil	Metal housing round	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QDPPU16-63-X5/MD-__	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Armature tube closed (standard)
QDPPU16-63-X5/MD-_HB0	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QDPPU16-63-X5/MD-_HB4.5	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QDPPU16-63-X5/MD-D1_	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/MD-D1HB0	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QDPPU16-63-X5/MD-D1HB4.5	63 l/min	without coil	Metal housing, square	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QDPPU16-63-X5/MJ-__	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Armature tube closed (standard)
QDPPU16-63-X5/MJ-_HB0	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Screw plug
QDPPU16-63-X5/MJ-_HB4.5	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	NBR	Manual override
QDPPU16-63-X5/MJ-D1_	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/MJ-D1HB0	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QDPPU16-63-X5/MJ-D1HB4.5	63 l/min	without coil	Metal housing, square	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QDPPU16-63-X5/MG-__	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Armature tube closed (standard)
QDPPU16-63-X5/MG-_HB0	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Screw plug
QDPPU16-63-X5/MG-_HB4.5	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	NBR	Manual override
QDPPU16-63-X5/MG-D1_	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Armature tube closed (standard)
QDPPU16-63-X5/MG-D1HB0	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QDPPU16-63-X5/MG-D1HB4.5	63 l/min	without coil	Metal housing, square	Connector Deutsch DT04-2P	FKM (Viton)	Manual override

上一篇QDPPM33_ME 比例3通流量控制插装阀 # WANDF下一篇QNPPU16 比例2通流量控制插装阀 # WANDFLUH

QDPPU16 比例3通流量控制插装阀 # WANDFLUH // 万福乐

比例3通流量控制插装阀

Description

Application

Key facts

公司地址

服务邮箱

联系电话

技术支持
