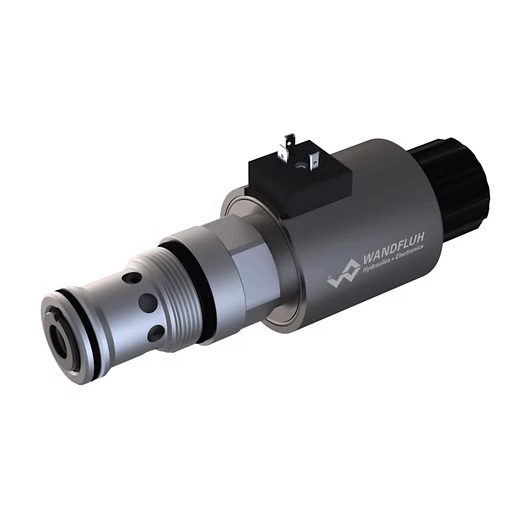

QNPPM42_W 比例2通流量控制插装阀 # WANDFLUH // 万福乐


QNPPM42_W

比例2通流量控制插装阀（滑动线圈）

Description

直接操作的负载补偿比例流量控制阀，采用旋入式阀芯设计，用于符合ISO7789标准的腔体。当电磁铁断电时，控制阀芯由弹簧保持在关闭位置。电流的变化伴随着体积流量的比例变化。介质从入口（1）通过节流阀和控制活塞流向受控出口（2）。Wandfluh比例放大器可用于控制（见寄存器1.13）。

Application

比例流量控制阀适用于精确的速度控制，在这种情况下，无论入口和出口压力如何，用户流量必须保持恒定。旋入式滤芯非常适用于安装在控制块中。可使用阶梯工具在钢块和铝块上制作滤芯安装孔（租用或购买）。请参考寄存器2.13中的数据表。

Key facts

比例式2路流量控制盒

直接控制
Qmax = 170 l/min
QN max=160l/min
pmax = 350 bar

QNPPM42-100-G12/WD-_HB0	100 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-100-G12/WD-_HC8.5	100 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-100-G12/WD-D1HB0	100 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-100-G12/WD-D1HC8.5	100 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-100-G12/WJ-_HB0	100 l/min	12 VDC	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-100-G12/WJ-_HC8.5	100 l/min	12 VDC	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-100-G12/WJ-D1HB0	100 l/min	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-100-G12/WJ-D1HC8.5	100 l/min	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-100-G12/WG-_HB0	100 l/min	12 VDC	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-100-G12/WG-_HC8.5	100 l/min	12 VDC	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-100-G12/WG-D1HB0	100 l/min	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-100-G12/WG-D1HC8.5	100 l/min	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QNPPM42-100-G24/WD-_HB0	100 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-100-G24/WD-_HC8.5	100 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-100-G24/WD-D1HB0	100 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-100-G24/WD-D1HC8.5	100 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-100-G24/WJ-_HB0	100 l/min	24 VDC	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-100-G24/WJ-_HC8.5	100 l/min	24 VDC	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-100-G24/WJ-D1HB0	100 l/min	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-100-G24/WJ-D1HC8.5	100 l/min	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-100-G24/WG-_HB0	100 l/min	24 VDC	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-100-G24/WG-_HC8.5	100 l/min	24 VDC	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-100-G24/WG-D1HB0	100 l/min	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-100-G24/WG-D1HC8.5	100 l/min	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QNPPM42-100-X5/WD-_HB0	100 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-100-X5/WD-_HC8.5	100 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-100-X5/WD-D1HB0	100 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-100-X5/WD-D1HC8.5	100 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-100-X5/WJ-_HB0	100 l/min	without coil	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-100-X5/WJ-_HC8.5	100 l/min	without coil	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-100-X5/WJ-D1HB0	100 l/min	without coil	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-100-X5/WJ-D1HC8.5	100 l/min	without coil	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-100-X5/WG-_HB0	100 l/min	without coil	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-100-X5/WG-_HC8.5	100 l/min	without coil	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-100-X5/WG-D1HB0	100 l/min	without coil	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-100-X5/WG-D1HC8.5	100 l/min	without coil	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QNPPM42-160-G12/WD-_HB0	160 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-160-G12/WD-_HC8.5	160 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-160-G12/WD-D1HB0	160 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-160-G12/WD-D1HC8.5	160 l/min	12 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-160-G12/WJ-_HB0	160 l/min	12 VDC	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-160-G12/WJ-_HC8.5	160 l/min	12 VDC	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-160-G12/WJ-D1HB0	160 l/min	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-160-G12/WJ-D1HC8.5	160 l/min	12 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-160-G12/WG-_HB0	160 l/min	12 VDC	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-160-G12/WG-_HC8.5	160 l/min	12 VDC	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-160-G12/WG-D1HB0	160 l/min	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-160-G12/WG-D1HC8.5	160 l/min	12 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QNPPM42-160-G24/WD-_HB0	160 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-160-G24/WD-_HC8.5	160 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-160-G24/WD-D1HB0	160 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-160-G24/WD-D1HC8.5	160 l/min	24 VDC	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-160-G24/WJ-_HB0	160 l/min	24 VDC	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-160-G24/WJ-_HC8.5	160 l/min	24 VDC	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-160-G24/WJ-D1HB0	160 l/min	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-160-G24/WJ-D1HC8.5	160 l/min	24 VDC	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-160-G24/WG-_HB0	160 l/min	24 VDC	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-160-G24/WG-_HC8.5	160 l/min	24 VDC	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-160-G24/WG-D1HB0	160 l/min	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-160-G24/WG-D1HC8.5	160 l/min	24 VDC	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
QNPPM42-160-X5/WD-_HB0	160 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	NBR	Screw plug
QNPPM42-160-X5/WD-_HC8.5	160 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	NBR	Manual override
QNPPM42-160-X5/WD-D1HB0	160 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Screw plug
QNPPM42-160-X5/WD-D1HC8.5	160 l/min	without coil	Connector socket EN 175301-803 / ISO 4400	FKM (Viton)	Manual override
QNPPM42-160-X5/WJ-_HB0	160 l/min	without coil	Connector socket AMP Junior-Timer	NBR	Screw plug
QNPPM42-160-X5/WJ-_HC8.5	160 l/min	without coil	Connector socket AMP Junior-Timer	NBR	Manual override
QNPPM42-160-X5/WJ-D1HB0	160 l/min	without coil	Connector socket AMP Junior-Timer	FKM (Viton)	Screw plug
QNPPM42-160-X5/WJ-D1HC8.5	160 l/min	without coil	Connector socket AMP Junior-Timer	FKM (Viton)	Manual override
QNPPM42-160-X5/WG-_HB0	160 l/min	without coil	Connector Deutsch DT04-2P	NBR	Screw plug
QNPPM42-160-X5/WG-_HC8.5	160 l/min	without coil	Connector Deutsch DT04-2P	NBR	Manual override
QNPPM42-160-X5/WG-D1HB0	160 l/min	without coil	Connector Deutsch DT04-2P	FKM (Viton)	Screw plug
QNPPM42-160-X5/WG-D1HC8.5	160 l/min	without coil	Connector Deutsch DT04-2P	FKM (Viton)	Manual override
