D_P_A03

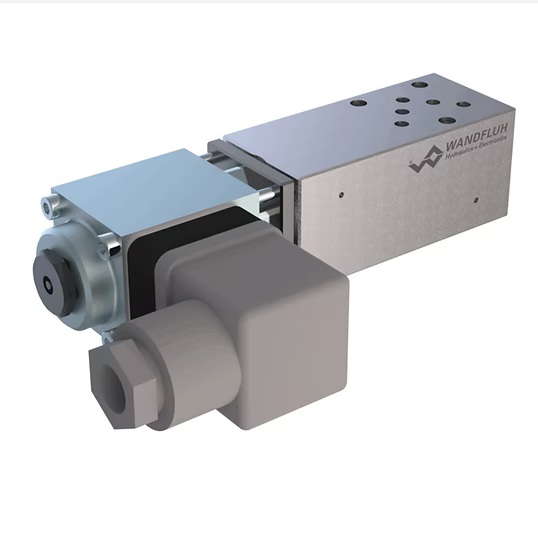

比例节流阀法兰和叠加结构
Description
直接控制的比例节流阀，采用法兰和夹层设计。安装了符合ISO7789标准的M18x1.5的比例节流阀芯。 功能可选择 "常开 "或 "常闭" 在A、B和AB的夹层版本中，直接在板上安装了一个用于反方向自由流动的旁通单向阀。各有2个体积流量级。通过内部比例电磁铁（VDE标准0580）来调节体积流量。
Application
比例节流阀适用于精确的进料控制。极其敏感的打开和关闭行为使固定或移动系统中的运动序列得到顺利控制，例如机床、市政车辆。Mini-3比例节流阀适用于需要低重量和最小尺寸的液压控制。
Key facts
比例节流阀 法兰盘和夹层结构
| DNPFA 03-A/B-4-G12 | «normally closed» | Flange construction | A → B | 4 l/min | 12 VDC |
| DNPFA 03-A/B-4-G24 | «normally closed» | Flange construction | A → B | 4 l/min | 24 VDC |
| DNPFA 03-A/B-6,3-G12 | «normally closed» | Flange construction | A → B | 6,3 l/min | 12 VDC |
| DNPFA 03-A/B-6,3-G24 | «normally closed» | Flange construction | A → B | 6,3 l/min | 24 VDC |
| DNPFA 03-P-4-G12 | «normally closed» | Flange construction | in P | 4 l/min | 12 VDC |
| DNPFA 03-P-4-G24 | «normally closed» | Flange construction | in P | 4 l/min | 24 VDC |
| DNPFA 03-P-6,3-G12 | «normally closed» | Flange construction | in P | 6,3 l/min | 12 VDC |
| DNPFA 03-P-6,3-G24 | «normally closed» | Flange construction | in P | 6,3 l/min | 24 VDC |
| DNPFA 03-T-4-G12 | «normally closed» | Flange construction | in T | 4 l/min | 12 VDC |
| DNPFA 03-T-4-G24 | «normally closed» | Flange construction | in T | 4 l/min | 24 VDC |
| DNPFA 03-T-6,3-G12 | «normally closed» | Flange construction | in T | 6,3 l/min | 12 VDC |
| DNPFA 03-T-6,3-G24 | «normally closed» | Flange construction | in T | 6,3 l/min | 24 VDC |
| DNPFA 03-A-4-G12 | «normally closed» | Flange construction | in A | 4 l/min | 12 VDC |
| DNPFA 03-A-4-G24 | «normally closed» | Flange construction | in A | 4 l/min | 24 VDC |
| DNPFA 03-A-6,3-G12 | «normally closed» | Flange construction | in A | 6,3 l/min | 12 VDC |
| DNPFA 03-A-6,3-G24 | «normally closed» | Flange construction | in A | 6,3 l/min | 24 VDC |
| DNPFA 03-B-4-G12 | «normally closed» | Flange construction | in B | 4 l/min | 12 VDC |
| DNPFA 03-B-4-G24 | «normally closed» | Flange construction | in B | 4 l/min | 24 VDC |
| DNPFA 03-B-6,3-G12 | «normally closed» | Flange construction | in B | 6,3 l/min | 12 VDC |
| DNPFA 03-B-6,3-G24 | «normally closed» | Flange construction | in B | 6,3 l/min | 24 VDC |
