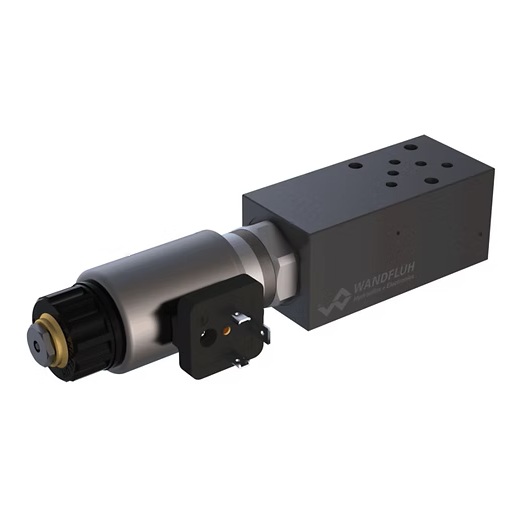

DNP_A04
比例节流阀法兰和叠加结构
Description
直接操作的比例节流阀，采用法兰和夹层设计。根据ISO7789标准，安装了M22x1.5的比例节流阀芯。 在A、B和AB的夹层版本中，直接在板上安装了一个用于反方向自由流动的旁通单向阀。法兰体是尖的，夹层板是磷化的。
Application
比例节流阀适用于精确的进料控制。极其敏感的打开和关闭行为使固定或移动系统中的运动序列得到顺利控制，例如机床、市政车辆。Mini-4比例节流阀适用于需要低重量和最小尺寸的液压控制。
Key facts
比例节流阀
法兰盘和夹层结构
| DNPFA04-A/B-6,3 - G24/WD - HB0 | Flange construction | A → B | DNPFA04 - A/B |
| DNPFA04-A/B-10 - G12/ME-A1D1 | Flange construction | A → B | DNPSA04 - P |
| DNPFA04-P-6,3 - G24/WD - HB0 | Flange construction | in P | DNPFA04 - A/B |
| DNPFA04-P-10 - G12/ME-A1D1 | Flange construction | in P | DNPSA04 - P |
| DNPFA04-T-6,3 - G24/WD - HB0 | Flange construction | in T | DNPFA04 - A/B |
| DNPFA04-T-10 - G12/ME-A1D1 | Flange construction | in T | DNPSA04 - P |
| DNPFA04-A-6,3 - G24/WD - HB0 | Flange construction | in A | DNPFA04 - A/B |
| DNPFA04-A-10 - G12/ME-A1D1 | Flange construction | in A | DNPSA04 - P |
| DNPFA04-B-6,3 - G24/WD - HB0 | Flange construction | in B | DNPFA04 - A/B |
| DNPFA04-B-10 - G12/ME-A1D1 | Flange construction | in B | DNPSA04 - P |
| DNPFA04-AB-6,3 - G24/WD - HB0 | Flange construction | in A and B | DNPFA04 - A/B |
| DNPFA04-AB-10 - G12/ME-A1D1 | Flange construction | in A and B | DNPSA04 - P |
| DNPSA04-A/B-6,3 - G24/WD - HB0 | Sandwich construction | A → B | DNPFA04 - A/B |
| DNPSA04-A/B-10 - G12/ME-A1D1 | Sandwich construction | A → B | DNPSA04 - P |
| DNPSA04-P-6,3 - G24/WD - HB0 | Sandwich construction | in P | DNPFA04 - A/B |
| DNPSA04-P-10 - G12/ME-A1D1 | Sandwich construction | in P | DNPSA04 - P |
| DNPSA04-T-6,3 - G24/WD - HB0 | Sandwich construction | in T | DNPFA04 - A/B |
| DNPSA04-T-10 - G12/ME-A1D1 | Sandwich construction | in T | DNPSA04 - P |
| DNPSA04-A-6,3 - G24/WD - HB0 | Sandwich construction | in A | DNPFA04 - A/B |
| DNPSA04-A-10 - G12/ME-A1D1 | Sandwich construction | in A | DNPSA04 - P |
