DNP_A06

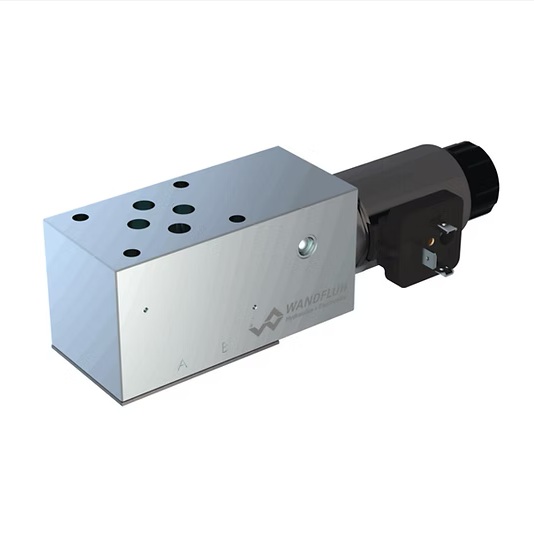

比例节流阀法兰和叠加结构
Description
直接操作的比例节流阀，采用法兰和夹层设计。安装了符合ISO7789标准的M22x1.5比例节流阀芯。 在A、B和AB的夹层型中，直接在板上安装了一个用于反方向自由流动的旁通单向阀。法兰体是注塑成型的，夹层板是磷化处理的。
Application
比例节流阀适用于精确的进料控制。极为敏感的打开和关闭行为使固定或移动系统中的运动序列得到顺利控制，例如机床、通信车辆。
Key facts
比例节流阀
法兰盘和夹层结构
| DNPFA06-A/B-10 - G24/WD - HB0 | Flange construction | A → B | DNPFA06 - A/B |
| DNPFA06-A/B-25 - G12/ME-A1D1 | Flange construction | A → B | DNPSA06 - P |
| DNPFA06-P-10 - G24/WD - HB0 | Flange construction | in P | DNPFA06 - A/B |
| DNPFA06-P-25 - G12/ME-A1D1 | Flange construction | in P | DNPSA06 - P |
| DNPFA06-T-10 - G24/WD - HB0 | Flange construction | in T | DNPFA06 - A/B |
| DNPFA06-T-25 - G12/ME-A1D1 | Flange construction | in T | DNPSA06 - P |
| DNPFA06-A-10 - G24/WD - HB0 | Flange construction | in A | DNPFA06 - A/B |
| DNPFA06-A-25 - G12/ME-A1D1 | Flange construction | in A | DNPSA06 - P |
| DNPFA06-B-10 - G24/WD - HB0 | Flange construction | in B | DNPFA06 - A/B |
| DNPFA06-B-25 - G12/ME-A1D1 | Flange construction | in B | DNPSA06 - P |
| DNPFA06-AB-10 - G24/WD - HB0 | Flange construction | in A and B | DNPFA06 - A/B |
| DNPFA06-AB-25 - G12/ME-A1D1 | Flange construction | in A and B | DNPSA06 - P |
| DNPSA06-A/B-10 - G24/WD - HB0 | Sandwich construction | A → B | DNPFA06 - A/B |
| DNPSA06-A/B-25 - G12/ME-A1D1 | Sandwich construction | A → B | DNPSA06 - P |
| DNPSA06-P-10 - G24/WD - HB0 | Sandwich construction | in P | DNPFA06 - A/B |
| DNPSA06-P-25 - G12/ME-A1D1 | Sandwich construction | in P | DNPSA06 - P |
| DNPSA06-T-10 - G24/WD - HB0 | Sandwich construction | in T | DNPFA06 - A/B |
| DNPSA06-T-25 - G12/ME-A1D1 | Sandwich construction | in T | DNPSA06 - P |
| DNPSA06-A-10 - G24/WD - HB0 | Sandwich construction | in A | DNPFA06 - A/B |
| DNPSA06-A-25 - G12/ME-A1D1 | Sandwich construction | in A | DNPSA06 - P |
