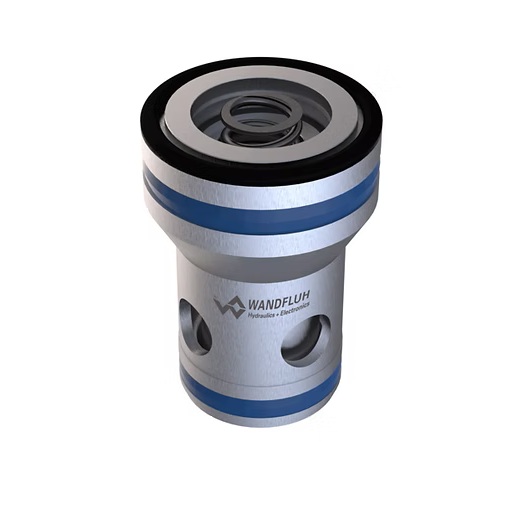

C_40 2通插装阀 # WANDFLUH // 万福乐


C_40

2通插装阀

Description

双向滑入式插装阀是液压逻辑元件，安装在符合ISO 7368标准的控制块中，具有标准化的腔体。它们的结构简单而紧凑，能够以低压力损失实现非常大的流量。这些特性减少了功率损失，提高了效率。通过单个阀件的模块化结构和使用适当的盖和先导阀组合，可以获得大量不同的功能。

Application

双向滑入式插装阀需要一个相应的控制盖来实现全部功能。该控制盖的主要功能是将滑入式插装阀固定在腔体内。此外，该盖子还可以配备一个额外的先导阀和一个孔口。

Key facts

2通盖板插装阀

Qmax = 1200 l/min
pmax = 350 bar

CS40-10/0/0.4-C7	Seat construction	1:01	0 bar	0.4 mm	Connection X → B for non-return functions
CS40-10/0/0.4-C5	Seat construction	1:01	0 bar	0.4 mm	additional seal on poppet spool
CS40-10/0/0.6-C7	Seat construction	1:01	0 bar	0.6 mm	Connection X → B for non-return functions
CS40-10/0/0.6-C5	Seat construction	1:01	0 bar	0.6 mm	additional seal on poppet spool
CS40-10/0/0-C7	Seat construction	1:01	0 bar	plugged	Connection X → B for non-return functions
CS40-10/0/0-C5	Seat construction	1:01	0 bar	plugged	additional seal on poppet spool
CS40-10/05/0.4-C7	Seat construction	1:01	0.5 bar	0.4 mm	Connection X → B for non-return functions
CS40-10/05/0.4-C5	Seat construction	1:01	0.5 bar	0.4 mm	additional seal on poppet spool
CS40-10/05/0.6-C7	Seat construction	1:01	0.5 bar	0.6 mm	Connection X → B for non-return functions
CS40-10/05/0.6-C5	Seat construction	1:01	0.5 bar	0.6 mm	additional seal on poppet spool
CS40-10/05/0-C7	Seat construction	1:01	0.5 bar	plugged	Connection X → B for non-return functions
CS40-10/05/0-C5	Seat construction	1:01	0.5 bar	plugged	additional seal on poppet spool
CS40-10/20/0.4-C7	Seat construction	1:01	2.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-10/20/0.4-C5	Seat construction	1:01	2.0 bar	0.4 mm	additional seal on poppet spool
CS40-10/20/0.6-C7	Seat construction	1:01	2.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-10/20/0.6-C5	Seat construction	1:01	2.0 bar	0.6 mm	additional seal on poppet spool
CS40-10/20/0-C7	Seat construction	1:01	2.0 bar	plugged	Connection X → B for non-return functions
CS40-10/20/0-C5	Seat construction	1:01	2.0 bar	plugged	additional seal on poppet spool
CS40-10/50/0.4-C7	Seat construction	1:01	5.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-10/50/0.4-C5	Seat construction	1:01	5.0 bar	0.4 mm	additional seal on poppet spool
CS40-10/50/0.6-C7	Seat construction	1:01	5.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-10/50/0.6-C5	Seat construction	1:01	5.0 bar	0.6 mm	additional seal on poppet spool
CS40-10/50/0-C7	Seat construction	1:01	5.0 bar	plugged	Connection X → B for non-return functions
CS40-10/50/0-C5	Seat construction	1:01	5.0 bar	plugged	additional seal on poppet spool
CS40-12/0/0.4-C7	Seat construction	1:1,2	0 bar	0.4 mm	Connection X → B for non-return functions
CS40-12/0/0.4-C5	Seat construction	1:1,2	0 bar	0.4 mm	additional seal on poppet spool
CS40-12/0/0.6-C7	Seat construction	1:1,2	0 bar	0.6 mm	Connection X → B for non-return functions
CS40-12/0/0.6-C5	Seat construction	1:1,2	0 bar	0.6 mm	additional seal on poppet spool
CS40-12/0/0-C7	Seat construction	1:1,2	0 bar	plugged	Connection X → B for non-return functions
CS40-12/0/0-C5	Seat construction	1:1,2	0 bar	plugged	additional seal on poppet spool
CS40-12/05/0.4-C7	Seat construction	1:1,2	0.5 bar	0.4 mm	Connection X → B for non-return functions
CS40-12/05/0.4-C5	Seat construction	1:1,2	0.5 bar	0.4 mm	additional seal on poppet spool
CS40-12/05/0.6-C7	Seat construction	1:1,2	0.5 bar	0.6 mm	Connection X → B for non-return functions
CS40-12/05/0.6-C5	Seat construction	1:1,2	0.5 bar	0.6 mm	additional seal on poppet spool
CS40-12/05/0-C7	Seat construction	1:1,2	0.5 bar	plugged	Connection X → B for non-return functions
CS40-12/05/0-C5	Seat construction	1:1,2	0.5 bar	plugged	additional seal on poppet spool
CS40-12/20/0.4-C7	Seat construction	1:1,2	2.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-12/20/0.4-C5	Seat construction	1:1,2	2.0 bar	0.4 mm	additional seal on poppet spool
CS40-12/20/0.6-C7	Seat construction	1:1,2	2.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-12/20/0.6-C5	Seat construction	1:1,2	2.0 bar	0.6 mm	additional seal on poppet spool
CS40-12/20/0-C7	Seat construction	1:1,2	2.0 bar	plugged	Connection X → B for non-return functions
CS40-12/20/0-C5	Seat construction	1:1,2	2.0 bar	plugged	additional seal on poppet spool
CS40-12/50/0.4-C7	Seat construction	1:1,2	5.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-12/50/0.4-C5	Seat construction	1:1,2	5.0 bar	0.4 mm	additional seal on poppet spool
CS40-12/50/0.6-C7	Seat construction	1:1,2	5.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-12/50/0.6-C5	Seat construction	1:1,2	5.0 bar	0.6 mm	additional seal on poppet spool
CS40-12/50/0-C7	Seat construction	1:1,2	5.0 bar	plugged	Connection X → B for non-return functions
CS40-12/50/0-C5	Seat construction	1:1,2	5.0 bar	plugged	additional seal on poppet spool
CS40-20/0/0.4-C7	Seat construction	1:02	0 bar	0.4 mm	Connection X → B for non-return functions
CS40-20/0/0.4-C5	Seat construction	1:02	0 bar	0.4 mm	additional seal on poppet spool
CS40-20/0/0.6-C7	Seat construction	1:02	0 bar	0.6 mm	Connection X → B for non-return functions
CS40-20/0/0.6-C5	Seat construction	1:02	0 bar	0.6 mm	additional seal on poppet spool
CS40-20/0/0-C7	Seat construction	1:02	0 bar	plugged	Connection X → B for non-return functions
CS40-20/0/0-C5	Seat construction	1:02	0 bar	plugged	additional seal on poppet spool
CS40-20/05/0.4-C7	Seat construction	1:02	0.5 bar	0.4 mm	Connection X → B for non-return functions
CS40-20/05/0.4-C5	Seat construction	1:02	0.5 bar	0.4 mm	additional seal on poppet spool
CS40-20/05/0.6-C7	Seat construction	1:02	0.5 bar	0.6 mm	Connection X → B for non-return functions
CS40-20/05/0.6-C5	Seat construction	1:02	0.5 bar	0.6 mm	additional seal on poppet spool
CS40-20/05/0-C7	Seat construction	1:02	0.5 bar	plugged	Connection X → B for non-return functions
CS40-20/05/0-C5	Seat construction	1:02	0.5 bar	plugged	additional seal on poppet spool
CS40-20/20/0.4-C7	Seat construction	1:02	2.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-20/20/0.4-C5	Seat construction	1:02	2.0 bar	0.4 mm	additional seal on poppet spool
CS40-20/20/0.6-C7	Seat construction	1:02	2.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-20/20/0.6-C5	Seat construction	1:02	2.0 bar	0.6 mm	additional seal on poppet spool
CS40-20/20/0-C7	Seat construction	1:02	2.0 bar	plugged	Connection X → B for non-return functions
CS40-20/20/0-C5	Seat construction	1:02	2.0 bar	plugged	additional seal on poppet spool
CS40-20/50/0.4-C7	Seat construction	1:02	5.0 bar	0.4 mm	Connection X → B for non-return functions
CS40-20/50/0.4-C5	Seat construction	1:02	5.0 bar	0.4 mm	additional seal on poppet spool
CS40-20/50/0.6-C7	Seat construction	1:02	5.0 bar	0.6 mm	Connection X → B for non-return functions
CS40-20/50/0.6-C5	Seat construction	1:02	5.0 bar	0.6 mm	additional seal on poppet spool
CS40-20/50/0-C7	Seat construction	1:02	5.0 bar	plugged	Connection X → B for non-return functions
CS40-20/50/0-C5	Seat construction	1:02	5.0 bar	plugged	additional seal on poppet spool
CD40-10/0/0.4-C7	Seat construction with damping	1:01	0 bar	0.4 mm	Connection X → B for non-return functions
CD40-10/0/0.4-C5	Seat construction with damping	1:01	0 bar	0.4 mm	additional seal on poppet spool
CD40-10/0/0.6-C7	Seat construction with damping	1:01	0 bar	0.6 mm	Connection X → B for non-return functions
CD40-10/0/0.6-C5	Seat construction with damping	1:01	0 bar	0.6 mm	additional seal on poppet spool
CD40-10/0/0-C7	Seat construction with damping	1:01	0 bar	plugged	Connection X → B for non-return functions
CD40-10/0/0-C5	Seat construction with damping	1:01	0 bar	plugged	additional seal on poppet spool
CD40-10/05/0.4-C7	Seat construction with damping	1:01	0.5 bar	0.4 mm	Connection X → B for non-return functions
CD40-10/05/0.4-C5	Seat construction with damping	1:01	0.5 bar	0.4 mm	additional seal on poppet spool
CD40-10/05/0.6-C7	Seat construction with damping	1:01	0.5 bar	0.6 mm	Connection X → B for non-return functions
CD40-10/05/0.6-C5	Seat construction with damping	1:01	0.5 bar	0.6 mm	additional seal on poppet spool
CD40-10/05/0-C7	Seat construction with damping	1:01	0.5 bar	plugged	Connection X → B for non-return functions
CD40-10/05/0-C5	Seat construction with damping	1:01	0.5 bar	plugged	additional seal on poppet spool
CD40-10/20/0.4-C7	Seat construction with damping	1:01	2.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-10/20/0.4-C5	Seat construction with damping	1:01	2.0 bar	0.4 mm	additional seal on poppet spool
CD40-10/20/0.6-C7	Seat construction with damping	1:01	2.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-10/20/0.6-C5	Seat construction with damping	1:01	2.0 bar	0.6 mm	additional seal on poppet spool
CD40-10/20/0-C7	Seat construction with damping	1:01	2.0 bar	plugged	Connection X → B for non-return functions
CD40-10/20/0-C5	Seat construction with damping	1:01	2.0 bar	plugged	additional seal on poppet spool
CD40-10/50/0.4-C7	Seat construction with damping	1:01	5.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-10/50/0.4-C5	Seat construction with damping	1:01	5.0 bar	0.4 mm	additional seal on poppet spool
CD40-10/50/0.6-C7	Seat construction with damping	1:01	5.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-10/50/0.6-C5	Seat construction with damping	1:01	5.0 bar	0.6 mm	additional seal on poppet spool
CD40-10/50/0-C7	Seat construction with damping	1:01	5.0 bar	plugged	Connection X → B for non-return functions
CD40-10/50/0-C5	Seat construction with damping	1:01	5.0 bar	plugged	additional seal on poppet spool
CD40-12/0/0.4-C7	Seat construction with damping	1:1,2	0 bar	0.4 mm	Connection X → B for non-return functions
CD40-12/0/0.4-C5	Seat construction with damping	1:1,2	0 bar	0.4 mm	additional seal on poppet spool
CD40-12/0/0.6-C7	Seat construction with damping	1:1,2	0 bar	0.6 mm	Connection X → B for non-return functions
CD40-12/0/0.6-C5	Seat construction with damping	1:1,2	0 bar	0.6 mm	additional seal on poppet spool
CD40-12/0/0-C7	Seat construction with damping	1:1,2	0 bar	plugged	Connection X → B for non-return functions
CD40-12/0/0-C5	Seat construction with damping	1:1,2	0 bar	plugged	additional seal on poppet spool
CD40-12/05/0.4-C7	Seat construction with damping	1:1,2	0.5 bar	0.4 mm	Connection X → B for non-return functions
CD40-12/05/0.4-C5	Seat construction with damping	1:1,2	0.5 bar	0.4 mm	additional seal on poppet spool
CD40-12/05/0.6-C7	Seat construction with damping	1:1,2	0.5 bar	0.6 mm	Connection X → B for non-return functions
CD40-12/05/0.6-C5	Seat construction with damping	1:1,2	0.5 bar	0.6 mm	additional seal on poppet spool
CD40-12/05/0-C7	Seat construction with damping	1:1,2	0.5 bar	plugged	Connection X → B for non-return functions
CD40-12/05/0-C5	Seat construction with damping	1:1,2	0.5 bar	plugged	additional seal on poppet spool
CD40-12/20/0.4-C7	Seat construction with damping	1:1,2	2.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-12/20/0.4-C5	Seat construction with damping	1:1,2	2.0 bar	0.4 mm	additional seal on poppet spool
CD40-12/20/0.6-C7	Seat construction with damping	1:1,2	2.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-12/20/0.6-C5	Seat construction with damping	1:1,2	2.0 bar	0.6 mm	additional seal on poppet spool
CD40-12/20/0-C7	Seat construction with damping	1:1,2	2.0 bar	plugged	Connection X → B for non-return functions
CD40-12/20/0-C5	Seat construction with damping	1:1,2	2.0 bar	plugged	additional seal on poppet spool
CD40-12/50/0.4-C7	Seat construction with damping	1:1,2	5.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-12/50/0.4-C5	Seat construction with damping	1:1,2	5.0 bar	0.4 mm	additional seal on poppet spool
CD40-12/50/0.6-C7	Seat construction with damping	1:1,2	5.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-12/50/0.6-C5	Seat construction with damping	1:1,2	5.0 bar	0.6 mm	additional seal on poppet spool
CD40-12/50/0-C7	Seat construction with damping	1:1,2	5.0 bar	plugged	Connection X → B for non-return functions
CD40-12/50/0-C5	Seat construction with damping	1:1,2	5.0 bar	plugged	additional seal on poppet spool
CD40-20/0/0.4-C7	Seat construction with damping	1:02	0 bar	0.4 mm	Connection X → B for non-return functions
CD40-20/0/0.4-C5	Seat construction with damping	1:02	0 bar	0.4 mm	additional seal on poppet spool
CD40-20/0/0.6-C7	Seat construction with damping	1:02	0 bar	0.6 mm	Connection X → B for non-return functions
CD40-20/0/0.6-C5	Seat construction with damping	1:02	0 bar	0.6 mm	additional seal on poppet spool
CD40-20/0/0-C7	Seat construction with damping	1:02	0 bar	plugged	Connection X → B for non-return functions
CD40-20/0/0-C5	Seat construction with damping	1:02	0 bar	plugged	additional seal on poppet spool
CD40-20/05/0.4-C7	Seat construction with damping	1:02	0.5 bar	0.4 mm	Connection X → B for non-return functions
CD40-20/05/0.4-C5	Seat construction with damping	1:02	0.5 bar	0.4 mm	additional seal on poppet spool
CD40-20/05/0.6-C7	Seat construction with damping	1:02	0.5 bar	0.6 mm	Connection X → B for non-return functions
CD40-20/05/0.6-C5	Seat construction with damping	1:02	0.5 bar	0.6 mm	additional seal on poppet spool
CD40-20/05/0-C7	Seat construction with damping	1:02	0.5 bar	plugged	Connection X → B for non-return functions
CD40-20/05/0-C5	Seat construction with damping	1:02	0.5 bar	plugged	additional seal on poppet spool
CD40-20/20/0.4-C7	Seat construction with damping	1:02	2.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-20/20/0.4-C5	Seat construction with damping	1:02	2.0 bar	0.4 mm	additional seal on poppet spool
CD40-20/20/0.6-C7	Seat construction with damping	1:02	2.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-20/20/0.6-C5	Seat construction with damping	1:02	2.0 bar	0.6 mm	additional seal on poppet spool
CD40-20/20/0-C7	Seat construction with damping	1:02	2.0 bar	plugged	Connection X → B for non-return functions
CD40-20/20/0-C5	Seat construction with damping	1:02	2.0 bar	plugged	additional seal on poppet spool
CD40-20/50/0.4-C7	Seat construction with damping	1:02	5.0 bar	0.4 mm	Connection X → B for non-return functions
CD40-20/50/0.4-C5	Seat construction with damping	1:02	5.0 bar	0.4 mm	additional seal on poppet spool
CD40-20/50/0.6-C7	Seat construction with damping	1:02	5.0 bar	0.6 mm	Connection X → B for non-return functions
CD40-20/50/0.6-C5	Seat construction with damping	1:02	5.0 bar	0.6 mm	additional seal on poppet spool
CD40-20/50/0-C7	Seat construction with damping	1:02	5.0 bar	plugged	Connection X → B for non-return functions
CD40-20/50/0-C5	Seat construction with damping	1:02	5.0 bar	plugged	additional seal on poppet spool
