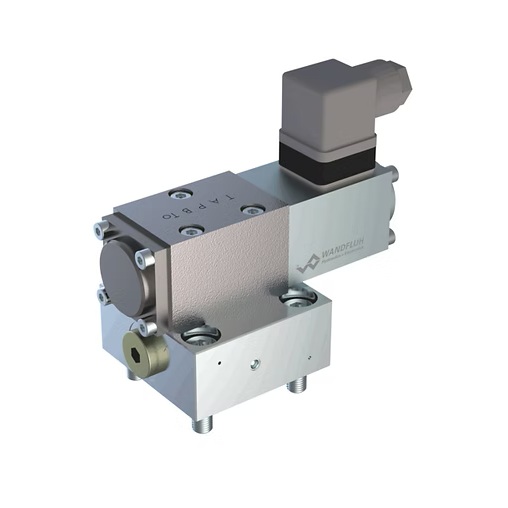

D16_1 用于2位2通插装阀的方向功能盖 # WANDFLUH // 万福乐


D16_1

用于2位2通插装阀的方向功能盖

Description

双向内置阀是液压逻辑元件，根据ISO 7368标准，内置到带有标准化安装孔的控制块中。它们简单而紧凑的设计允许非常大的流量和低压力损失。这些特点减少了功率损失，提高了经济效益。通过各个阀门部件的模块化设计和使用相应的阀盖和先导阀组合，可以获得各种不同的功能。

Application

双向内置阀需要一个相应的控制盖来完成功能。这个控制罩的主要功能是将内置阀固定在安装孔中。该盖子还可以配备一个额外的先导阀和一个喷嘴。

Key facts

控制罩
用于旅行功能
- pmax = 350 bar

D16111-SR110/0.6	111	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16111-SR110/1.0	111	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16111-SR115/0.6	111	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16111-SR115/1.0	111	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16111-SR230/0.6	111	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16111-SR230/1.0	111	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16111-SG12/0.6	111	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16111-SG12/1.0	111	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16111-SG24/0.6	111	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16111-SG24/1.0	111	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16111-MR110/0.6	111	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16111-MR110/1.0	111	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16111-MR115/0.6	111	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16111-MR115/1.0	111	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16111-MR230/0.6	111	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16111-MR230/1.0	111	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16111-MG12/0.6	111	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16111-MG12/1.0	111	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16111-MG24/0.6	111	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16111-MG24/1.0	111	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16112-SR110/0.6	112	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16112-SR110/1.0	112	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16112-SR115/0.6	112	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16112-SR115/1.0	112	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16112-SR230/0.6	112	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16112-SR230/1.0	112	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16112-SG12/0.6	112	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16112-SG12/1.0	112	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16112-SG24/0.6	112	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16112-SG24/1.0	112	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16112-MR110/0.6	112	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16112-MR110/1.0	112	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16112-MR115/0.6	112	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16112-MR115/1.0	112	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16112-MR230/0.6	112	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16112-MR230/1.0	112	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16112-MG12/0.6	112	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16112-MG12/1.0	112	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16112-MG24/0.6	112	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16112-MG24/1.0	112	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16121-SR110/0.6	121	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16121-SR110/1.0	121	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16121-SR115/0.6	121	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16121-SR115/1.0	121	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16121-SR230/0.6	121	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16121-SR230/1.0	121	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16121-SG12/0.6	121	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16121-SG12/1.0	121	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16121-SG24/0.6	121	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16121-SG24/1.0	121	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16121-MR110/0.6	121	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16121-MR110/1.0	121	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16121-MR115/0.6	121	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16121-MR115/1.0	121	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16121-MR230/0.6	121	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16121-MR230/1.0	121	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16121-MG12/0.6	121	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16121-MG12/1.0	121	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16121-MG24/0.6	121	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16121-MG24/1.0	121	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16122-SR110/0.6	122	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16122-SR110/1.0	122	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16122-SR115/0.6	122	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16122-SR115/1.0	122	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16122-SR230/0.6	122	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16122-SR230/1.0	122	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16122-SG12/0.6	122	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16122-SG12/1.0	122	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16122-SG24/0.6	122	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16122-SG24/1.0	122	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16122-MR110/0.6	122	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16122-MR110/1.0	122	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16122-MR115/0.6	122	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16122-MR115/1.0	122	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16122-MR230/0.6	122	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16122-MR230/1.0	122	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16122-MG12/0.6	122	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16122-MG12/1.0	122	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16122-MG24/0.6	122	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16122-MG24/1.0	122	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16113-SR110/0.6	113	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16113-SR110/1.0	113	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16113-SR115/0.6	113	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16113-SR115/1.0	113	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16113-SR230/0.6	113	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16113-SR230/1.0	113	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16113-SG12/0.6	113	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16113-SG12/1.0	113	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16113-SG24/0.6	113	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16113-SG24/1.0	113	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16113-MR110/0.6	113	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16113-MR110/1.0	113	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16113-MR115/0.6	113	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16113-MR115/1.0	113	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16113-MR230/0.6	113	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16113-MR230/1.0	113	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16113-MG12/0.6	113	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16113-MG12/1.0	113	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16113-MG24/0.6	113	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16113-MG24/1.0	113	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16114-SR110/0.6	114	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16114-SR110/1.0	114	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16114-SR115/0.6	114	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16114-SR115/1.0	114	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16114-SR230/0.6	114	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16114-SR230/1.0	114	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16114-SG12/0.6	114	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16114-SG12/1.0	114	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16114-SG24/0.6	114	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16114-SG24/1.0	114	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16114-MR110/0.6	114	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16114-MR110/1.0	114	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16114-MR115/0.6	114	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16114-MR115/1.0	114	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16114-MR230/0.6	114	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16114-MR230/1.0	114	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16114-MG12/0.6	114	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16114-MG12/1.0	114	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16114-MG24/0.6	114	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16114-MG24/1.0	114	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16123-SR110/0.6	123	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16123-SR110/1.0	123	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16123-SR115/0.6	123	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16123-SR115/1.0	123	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16123-SR230/0.6	123	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16123-SR230/1.0	123	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16123-SG12/0.6	123	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16123-SG12/1.0	123	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16123-SG24/0.6	123	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16123-SG24/1.0	123	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16123-MR110/0.6	123	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16123-MR110/1.0	123	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16123-MR115/0.6	123	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16123-MR115/1.0	123	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16123-MR230/0.6	123	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16123-MR230/1.0	123	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16123-MG12/0.6	123	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16123-MG12/1.0	123	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16123-MG24/0.6	123	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16123-MG24/1.0	123	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D16124-SR110/0.6	124	Standard 113, 114, 123, 124	110 VAC	0.6 mm
D16124-SR110/1.0	124	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D16124-SR115/0.6	124	Standard 113, 114, 123, 124	115 VAC	0.6 mm
D16124-SR115/1.0	124	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D16124-SR230/0.6	124	Standard 113, 114, 123, 124	230 VAC	0.6 mm
D16124-SR230/1.0	124	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D16124-SG12/0.6	124	Standard 113, 114, 123, 124	12 VDC	0.6 mm
D16124-SG12/1.0	124	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D16124-SG24/0.6	124	Standard 113, 114, 123, 124	24 VDC	0.6 mm
D16124-SG24/1.0	124	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D16124-MR110/0.6	124	Standard 111, 112, 121, 122	110 VAC	0.6 mm
D16124-MR110/1.0	124	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D16124-MR115/0.6	124	Standard 111, 112, 121, 122	115 VAC	0.6 mm
D16124-MR115/1.0	124	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D16124-MR230/0.6	124	Standard 111, 112, 121, 122	230 VAC	0.6 mm
D16124-MR230/1.0	124	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D16124-MG12/0.6	124	Standard 111, 112, 121, 122	12 VDC	0.6 mm
D16124-MG12/1.0	124	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D16124-MG24/0.6	124	Standard 111, 112, 121, 122	24 VDC	0.6 mm
D16124-MG24/1.0	124	Standard 111, 112, 121, 122	24 VDC	1.0 mm
