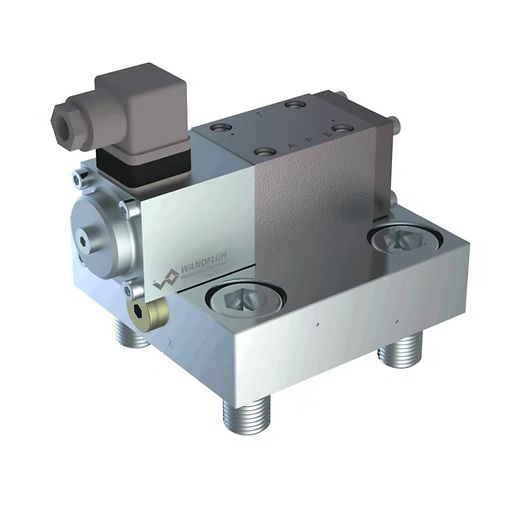

D40_1 用于2位2通插装阀的方向功能盖 # WANDFLUH // 万福乐


D40_1

用于2位2通插装阀的方向功能盖

Description

双向内置阀是液压逻辑元件，根据ISO 7368标准，内置到带有标准化安装孔的控制块中。它们简单而紧凑的设计允许非常大的流量和低压力损失。这些特点减少了功率损失，提高了经济效益。通过各个阀门部件的模块化设计和使用相应的阀盖和先导阀组合，可以获得各种不同的功能。

Application

双向内置阀需要一个相应的控制盖来完成功能。这个控制罩的主要功能是将内置阀固定在安装孔中。该盖子还可以配备一个额外的先导阀和一个喷嘴。

Key facts

方向功能的控制盖

pmax = 350 bar

D40111-SR110/0.8	111	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40111-SR110/1.0	111	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40111-SR115/0.8	111	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40111-SR115/1.0	111	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40111-SG12/0.8	111	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40111-SG12/1.0	111	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40111-SR230/0.8	111	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40111-SR230/1.0	111	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40111-SG24/0.8	111	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40111-SG24/1.0	111	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40111-MR110/0.8	111	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40111-MR110/1.0	111	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40111-MR115/0.8	111	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40111-MR115/1.0	111	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40111-MG12/0.8	111	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40111-MG12/1.0	111	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40111-MR230/0.8	111	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40111-MR230/1.0	111	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40111-MG24/0.8	111	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40111-MG24/1.0	111	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40112-SR110/0.8	112	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40112-SR110/1.0	112	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40112-SR115/0.8	112	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40112-SR115/1.0	112	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40112-SG12/0.8	112	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40112-SG12/1.0	112	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40112-SR230/0.8	112	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40112-SR230/1.0	112	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40112-SG24/0.8	112	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40112-SG24/1.0	112	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40112-MR110/0.8	112	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40112-MR110/1.0	112	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40112-MR115/0.8	112	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40112-MR115/1.0	112	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40112-MG12/0.8	112	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40112-MG12/1.0	112	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40112-MR230/0.8	112	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40112-MR230/1.0	112	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40112-MG24/0.8	112	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40112-MG24/1.0	112	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40113-SR110/0.8	113	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40113-SR110/1.0	113	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40113-SR115/0.8	113	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40113-SR115/1.0	113	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40113-SG12/0.8	113	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40113-SG12/1.0	113	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40113-SR230/0.8	113	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40113-SR230/1.0	113	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40113-SG24/0.8	113	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40113-SG24/1.0	113	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40113-MR110/0.8	113	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40113-MR110/1.0	113	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40113-MR115/0.8	113	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40113-MR115/1.0	113	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40113-MG12/0.8	113	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40113-MG12/1.0	113	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40113-MR230/0.8	113	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40113-MR230/1.0	113	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40113-MG24/0.8	113	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40113-MG24/1.0	113	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40114-SR110/0.8	114	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40114-SR110/1.0	114	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40114-SR115/0.8	114	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40114-SR115/1.0	114	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40114-SG12/0.8	114	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40114-SG12/1.0	114	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40114-SR230/0.8	114	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40114-SR230/1.0	114	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40114-SG24/0.8	114	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40114-SG24/1.0	114	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40114-MR110/0.8	114	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40114-MR110/1.0	114	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40114-MR115/0.8	114	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40114-MR115/1.0	114	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40114-MG12/0.8	114	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40114-MG12/1.0	114	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40114-MR230/0.8	114	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40114-MR230/1.0	114	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40114-MG24/0.8	114	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40114-MG24/1.0	114	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40121-SR110/0.8	121	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40121-SR110/1.0	121	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40121-SR115/0.8	121	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40121-SR115/1.0	121	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40121-SG12/0.8	121	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40121-SG12/1.0	121	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40121-SR230/0.8	121	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40121-SR230/1.0	121	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40121-SG24/0.8	121	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40121-SG24/1.0	121	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40121-MR110/0.8	121	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40121-MR110/1.0	121	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40121-MR115/0.8	121	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40121-MR115/1.0	121	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40121-MG12/0.8	121	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40121-MG12/1.0	121	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40121-MR230/0.8	121	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40121-MR230/1.0	121	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40121-MG24/0.8	121	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40121-MG24/1.0	121	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40122-SR110/0.8	122	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40122-SR110/1.0	122	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40122-SR115/0.8	122	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40122-SR115/1.0	122	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40122-SG12/0.8	122	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40122-SG12/1.0	122	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40122-SR230/0.8	122	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40122-SR230/1.0	122	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40122-SG24/0.8	122	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40122-SG24/1.0	122	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40122-MR110/0.8	122	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40122-MR110/1.0	122	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40122-MR115/0.8	122	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40122-MR115/1.0	122	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40122-MG12/0.8	122	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40122-MG12/1.0	122	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40122-MR230/0.8	122	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40122-MR230/1.0	122	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40122-MG24/0.8	122	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40122-MG24/1.0	122	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40123-SR110/0.8	123	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40123-SR110/1.0	123	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40123-SR115/0.8	123	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40123-SR115/1.0	123	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40123-SG12/0.8	123	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40123-SG12/1.0	123	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40123-SR230/0.8	123	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40123-SR230/1.0	123	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40123-SG24/0.8	123	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40123-SG24/1.0	123	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40123-MR110/0.8	123	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40123-MR110/1.0	123	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40123-MR115/0.8	123	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40123-MR115/1.0	123	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40123-MG12/0.8	123	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40123-MG12/1.0	123	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40123-MR230/0.8	123	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40123-MR230/1.0	123	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40123-MG24/0.8	123	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40123-MG24/1.0	123	Standard 111, 112, 121, 122	24 VDC	1.0 mm
D40124-SR110/0.8	124	Standard 113, 114, 123, 124	110 VAC	0.8 mm
D40124-SR110/1.0	124	Standard 113, 114, 123, 124	110 VAC	1.0 mm
D40124-SR115/0.8	124	Standard 113, 114, 123, 124	115 VAC	0.8 mm
D40124-SR115/1.0	124	Standard 113, 114, 123, 124	115 VAC	1.0 mm
D40124-SG12/0.8	124	Standard 113, 114, 123, 124	12 VDC	0.8 mm
D40124-SG12/1.0	124	Standard 113, 114, 123, 124	12 VDC	1.0 mm
D40124-SR230/0.8	124	Standard 113, 114, 123, 124	230 VAC	0.8 mm
D40124-SR230/1.0	124	Standard 113, 114, 123, 124	230 VAC	1.0 mm
D40124-SG24/0.8	124	Standard 113, 114, 123, 124	24 VDC	0.8 mm
D40124-SG24/1.0	124	Standard 113, 114, 123, 124	24 VDC	1.0 mm
D40124-MR110/0.8	124	Standard 111, 112, 121, 122	110 VAC	0.8 mm
D40124-MR110/1.0	124	Standard 111, 112, 121, 122	110 VAC	1.0 mm
D40124-MR115/0.8	124	Standard 111, 112, 121, 122	115 VAC	0.8 mm
D40124-MR115/1.0	124	Standard 111, 112, 121, 122	115 VAC	1.0 mm
D40124-MG12/0.8	124	Standard 111, 112, 121, 122	12 VDC	0.8 mm
D40124-MG12/1.0	124	Standard 111, 112, 121, 122	12 VDC	1.0 mm
D40124-MR230/0.8	124	Standard 111, 112, 121, 122	230 VAC	0.8 mm
D40124-MR230/1.0	124	Standard 111, 112, 121, 122	230 VAC	1.0 mm
D40124-MG24/0.8	124	Standard 111, 112, 121, 122	24 VDC	0.8 mm
D40124-MG24/1.0	124	Standard 111, 112, 121, 122	24 VDC	1.0 mm
