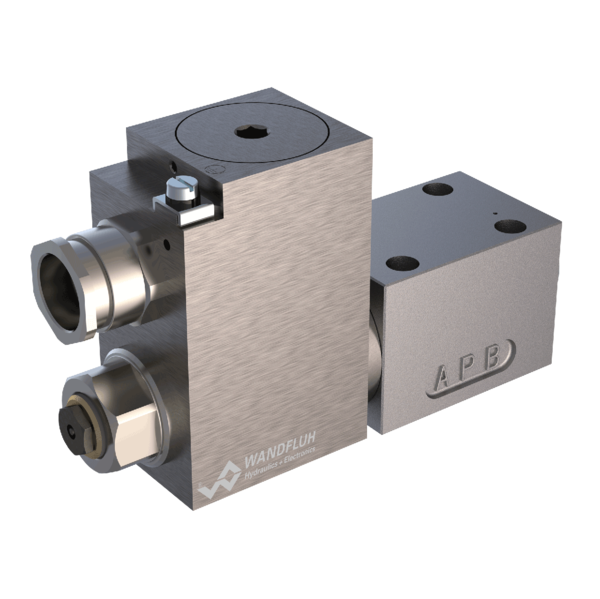

WDBFA06 防爆比例换向阀 # WANDFLUH // 万福乐


WDBFA06

防爆比例换向阀 Ex d II C

Description

直动式比例活塞阀，在5腔系统中带有4个端口。活塞配合精确，泄漏量小，使用寿命长。活塞行程、活塞开度和阀门体积流量与电磁铁电流成正比增加。阻燃封装的防爆电磁线圈可以防止内部的爆炸向外部泄漏，也可以防止可燃表面温度。

Application

这些阀门适用于危险区域、地面和采矿业。由于分辨率高、流量大、滞后小，比例阀是高要求任务的理想选择。应用于工业液压和移动液压，用于液压传动的软控制。

Key facts

比例阀

  • 法兰设计

  • Qmax = 35 l/min

  • 4个流量级

  • QN max = 25 l/min

  • pmax = 350 bar。

WandfluhWDBFA06-AC1-S-16-y-G12/L15-Z604484.1053WDBFA06-AC1-S-16-y/L15-Z604U= 12 VDC
WandfluhWDBFA06-AC1-S-25-G24/L15484.1052WDBFA06-AC1-S-25/L15U= 24 VDC
WandfluhWDBFA06-AC1-S-25-G24/L15-D1484.1059WDBFA06-AC1-S-25/L15-D1U= 24 VDC
WandfluhWDBFA06-AC1-S-25-G24/L15-M248484.1056WDBFA06-AC1-S-25/L15-M248U= 24 VDC
WandfluhWDBFA06-ACB-S-10-G24/L15484.1047WDBFA06-ACB-S-10/L15U= 24 VDC
WandfluhWDBFA06-ACB-S-10-G24/L15-HNK484.1067WDBFA06-ACB-S-10/L15-HNKU= 24 VDC
WandfluhWDBFA06-ACB-S-10-X5/L15-HNK484.1071WDBFA06-ACB-S-10/L15-HNK无线圈
WandfluhWDBFA06-ACB-S-10-y-G24/L15-HNKZ604484.1062WDBFA06-ACB-S-10-y/L15-HNKZ604U= 24 VDC
WandfluhWDBFA06-ACB-S-16-G24/L15484.1041WDBFA06-ACB-S-16/L15U= 24 VDC
WandfluhWDBFA06-ACB-S-16-G24/L15-HNK484.1068WDBFA06-ACB-S-16/L15-HNKU= 24 VDC
WandfluhWDBFA06-ACB-S-16-X5/L15-HNK484.1072WDBFA06-ACB-S-16/L15-HNK无线圈
WandfluhWDBFA06-ACB-S-16-G24/L9484.1058WDBFA06-ACB-S-16/L9U= 24 VDC
WandfluhWDBFA06-ACB-S-25-G24/L15484.1032WDBFA06-ACB-S-25/L15U= 24 VDC
WandfluhWDBFA06-ACB-S-25-G24/L15/MA484.1075WDBFA06-ACB-S-25/L15/MAU= 24 VDC
WandfluhWDBFA06-ACB-S-25-X5/L15-HNK484.1073WDBFA06-ACB-S-25/L15-HNK无线圈
WandfluhWDBFA06-ACB-S-25-G24/L15-M248484.1074WDBFA06-ACB-S-25/L15-M248U= 24 VDC
WandfluhWDBFA06-ACB-S-25-G24/L9484.1054WDBFA06-ACB-S-25/L9U= 24 VDC
WandfluhWDBFA06-ACB-S-25-y-G24/L15-HNKZ604484.1061WDBFA06-ACB-S-25-y/L15-HNKZ604U= 24 VDC
WandfluhWDBFA06-ACB-S-5-G24/L15484.1039WDBFA06-ACB-S-5/L15U= 24 VDC
WandfluhWDBFA06-ACB-S-5-X5/L15484.1046WDBFA06-ACB-S-5/L15无线圈
WandfluhWDBFA06-ACB-S-5-G24/L15-HNK484.1066WDBFA06-ACB-S-5/L15-HNKU= 24 VDC
WandfluhWDBFA06-ACB-S-5-X5/L15-HNK484.107WDBFA06-ACB-S-5/L15-HNK无线圈
WandfluhWDBFA06-ACB-S-5-G24/L15-M248484.1077WDBFA06-ACB-S-5/L15-M248U= 24 VDC
WandfluhWDBFA06-ADB-V-10-G24/L15484.2025WDBFA06-ADB-V-10/L15U= 24 VDC
WandfluhWDBFA06-ADB-V-10-G24/L15/MA484.2052WDBFA06-ADB-V-10/L15/MAU= 24 VDC
WandfluhWDBFA06-ADB-V-10-G24/L15-HNK484.2039WDBFA06-ADB-V-10/L15-HNKU= 24 VDC
WandfluhWDBFA06-ADB-V-10-G60/L15484.2029WDBFA06-ADB-V-10-G60/L15U= 60 VDC
WandfluhWDBFA06-ADB-V-10-y-G24/L15-HNKZ604484.2045WDBFA06-ADB-V-10-y/L15-HNKZ604U= 24 VDC
WandfluhWDBFA06-ADB-V-16-G24/L15484.2014WDBFA06-ADB-V-16/L15U= 24 VDC
WandfluhWDBFA06-ADB-V-16-X5/L15484.2041WDBFA06-ADB-V-16/L15无线圈
WandfluhWDBFA06-ADB-V-16-G24/L15-HNK484.204WDBFA06-ADB-V-16/L15-HNKU= 24 VDC
WandfluhWDBFA06-ADB-V-16-G24/L15-M187484.2049WDBFA06-ADB-V-16/L15-M187U= 24 VDC
WandfluhWDBFA06-ADB-V-25-G12/L15484.2032WDBFA06-ADB-V-25/L15U= 12 VDC
WandfluhWDBFA06-ADB-V-25-G24/L15484.2012WDBFA06-ADB-V-25/L15U= 24 VDC
WandfluhWDBFA06-ADB-V-25-X5/L15484.2022WDBFA06-ADB-V-25/L15无线圈
WandfluhWDBFA06-ADB-V-25-G24/L15/MA484.2053WDBFA06-ADB-V-25/L15/MAU= 24 VDC
WandfluhWDBFA06-ADB-V-25-G24/L15-HNK484.2037WDBFA06-ADB-V-25/L15-HNKU= 24 VDC
WandfluhWDBFA06-ADB-V-25-G24/L15-M248484.2026WDBFA06-ADB-V-25/L15-M248U= 24 VDC
WandfluhWDBFA06-ADB-V-25-G24/L17/UL-HG484.205WDBFA06-ADB-V-25/L17/UL-HGU= 24 VDC
WandfluhWDBFA06-ADB-V-25-y-G24/L15-HNKZ604484.2044WDBFA06-ADB-V-25-y/L15-HNKZ604U= 24 VDC
WandfluhWDBFA06-ADB-V-5-G24/L15484.2017WDBFA06-ADB-V-5/L15U= 24 VDC
WandfluhWDBFA06-ADB-V-5-G24/L15-HNK484.2038WDBFA06-ADB-V-5/L15-HNKU= 24 VDC
WandfluhWDBFA06-ADB-V-5-G24/L17/UL484.2042WDBFA06-ADB-V-5/L17/ULU= 24 VDC
WandfluhWDBFA06-ADB-V-5-G24/L17/UL-HG484.2048WDBFA06-ADB-V-5/L17/UL-HGU= 24 VDC
