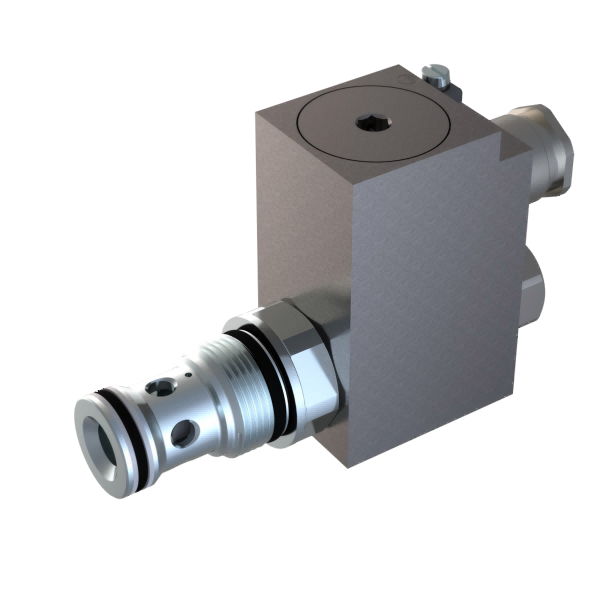

SVYPM33
电磁无泄漏阀插装阀 （先导式、防爆） Ex d II C
Description
先导式2/2通电磁提动阀，采用旋入式阀芯设计，适用于ISO7789标准的腔体。 AB和CB型在通电位置关闭，BA和BC型在断电位置关闭。主活塞通过施加的压力实际无泄漏地关闭。在反向流动的情况下，阀门在达到开启压力后打开。阻燃封装的防爆电磁线圈可以防止内部的爆炸逃逸到外部，也可以防止表面温度被点燃。
Application
这些阀门适用于危险区域、地面以及采矿业。座式阀用于任何紧密关闭功能的地方，如无泄漏保持负载，夹紧和夹持是至关重要的。阶梯式工具可用于制造钢块和铝块的插装阀座孔（租用或购买）。请参考注册表2.13中的数据表。
Key facts
电磁阀座的阀芯
螺线管操作
先导式
常开和常闭
2/2-way
Qmax = 150 l/min
pmax=350 bar
| Wandfluh | SVYPM33-AB-G24/L15 | 500.4117 | SVYPM33-AB/L15 | U= 24 VDC |
| Wandfluh | SVYPM33-AB-R115/L15 | 500.4131 | SVYPM33-AB/L15 | U= 115 VAC |
| Wandfluh | SVYPM33-AB-X5/L15 | 500.4155 | SVYPM33-AB/L15 | 无线圈 |
| Wandfluh | SVYPM33-AB-G24/L15-D1 | 500.4154 | SVYPM33-AB/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM33-AB-G24/L15-HG | 500.4177 | SVYPM33-AB/L15-HG | U= 24 VDC |
| Wandfluh | SVYPM33-AB-G24/L15-HGK | 500.4198 | SVYPM33-AB/L15-HGK | U= 24 VDC |
| Wandfluh | SVYPM33-AB-G24/L15-Z604 | 500.4151 | SVYPM33-AB/L15-Z604 | U= 24 VDC |
| Wandfluh | SVYPM33-AB-X5/L9 | 500.4146 | SVYPM33-AB/L9 | 无线圈 |
| Wandfluh | SVYPM33-BA-G24/L15 | 500.4118 | SVYPM33-BA/L15 | U= 24 VDC |
| Wandfluh | SVYPM33-BA-X5/L15 | 500.4121 | SVYPM33-BA/L15 | 无线圈 |
| Wandfluh | SVYPM33-BA-G24/L15-D1 | 500.4203 | SVYPM33-BA/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM33-BA-X5/L15-D1 | 500.4159 | SVYPM33-BA/L15-D1 | 无线圈 |
| Wandfluh | SVYPM33-BA-G12/L15-HZ | 500.4219 | SVYPM33-BA/L15-HZ | U= 12 VDC |
| Wandfluh | SVYPM33-BA-G24/L15-HZ | 500.4176 | SVYPM33-BA/L15-HZ | U= 24 VDC |
| Wandfluh | SVYPM33-BA-G24/L15-HZK | 500.4197 | SVYPM33-BA/L15-HZK | U= 24 VDC |
| Wandfluh | SVYPM33-BA-X5/L15-HZK | 500.4199 | SVYPM33-BA/L15-HZK | 无线圈 |
| Wandfluh | SVYPM33-BA-G24/L15-Z604 | 500.4173 | SVYPM33-BA/L15-Z604 | U= 24 VDC |
| Wandfluh | SVYPM33-BA-G24/L17/UL | 500.4178 | SVYPM33-BA/L17/UL | U= 24 VDC |
| Wandfluh | SVYPM33-BA-G24/L9 | 500.42 | SVYPM33-BA/L9 | U= 24 VDC |
| Wandfluh | SVYPM33-BA-X5/L9 | 500.418 | SVYPM33-BA/L9 | 无线圈 |
| Wandfluh | SVYPM33-BC-G24/L15 | 500.412 | SVYPM33-BC/L15 | U= 24 VDC |
| Wandfluh | SVYPM33-BC-X5/L15 | 500.4135 | SVYPM33-BC/L15 | 无线圈 |
| Wandfluh | SVYPM33-BC-G24/L15-D1 | 500.4204 | SVYPM33-BC/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM33-BC-G24/L15-M256 | 500.4192 | SVYPM33-BC/L15-M256 | U= 24 VDC |
| Wandfluh | SVYPM33-BC-G24/L9 | 500.4217 | SVYPM33-BC/L9 | U= 24 VDC |
| Wandfluh | SVYPM33-CB-G24/L15 | 500.4119 | SVYPM33-CB/L15 | U= 24 VDC |
| Wandfluh | SVYPM33-CB-X5/L15 | 500.4152 | SVYPM33-CB/L15 | 无线圈 |
| Wandfluh | SVYPM33-CB-G24/L15-D1 | 500.4171 | SVYPM33-CB/L15-D1 | U= 24 VDC |
| Wandfluh | SVYPM33-CB-X5/L15-D1 | 500.4208 | SVYPM33-CB/L15-D1 | 无线圈 |
| Wandfluh | SVYPM33-CB-G24/L15-Z604 | 500.4122 | SVYPM33-CB/L15-Z604 | U= 24 VDC |
| Wandfluh | SVYPM33-CB-G24/L9 | 500.4141 | SVYPM33-CB/L9 | U= 24 VDC |
| Wandfluh | SVYPM33-CB-G24/L9-D1 | 500.4195 | SVYPM33-CB/L9-D1 | U= 24 VDC |
| SVYPM33-BC…/G12/L15/IM/HZ | 12 VDC | 15W | Inmetro | H 91 |
| SVYPM33-BC…/G12/L15/IM/HR | 12 VDC | 15W | Inmetro | HR 43 |
| SVYPM33-BC…/G12/L15/IM/_ | 12 VDC | 15W | Inmetro | HB 0 |
| SVYPM33-BC…/G12/L15/NP/HN | 12 VDC | 15W | NEPSI | HN 43 |
| SVYPM33-BC…/G12/L15/NP/HZ | 12 VDC | 15W | NEPSI | H 91 |
| SVYPM33-BC…/G12/L15/NP/HR | 12 VDC | 15W | NEPSI | HR 43 |
| SVYPM33-BC…/G12/L15/NP/_ | 12 VDC | 15W | NEPSI | HB 0 |
| SVYPM33-BC…/G12/L15/UL/HN | 12 VDC | 15W | UL/CSA | HN 43 |
| SVYPM33-BC…/G12/L15/UL/HZ | 12 VDC | 15W | UL/CSA | H 91 |
| SVYPM33-BC…/G12/L15/UL/HR | 12 VDC | 15W | UL/CSA | HR 43 |
| SVYPM33-BC…/G12/L15/UL/_ | 12 VDC | 15W | UL/CSA | HB 0 |
