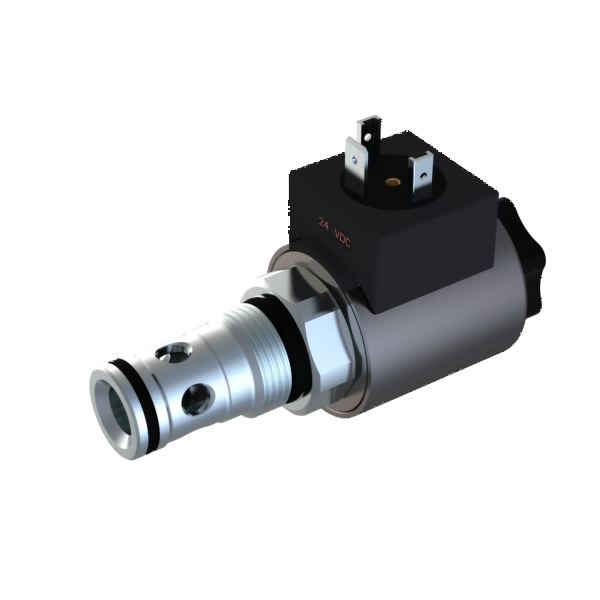

SVSPM22 电磁无泄漏阀插装阀 （先导式） # WANDFLUH // 万福乐


SVSPM22

电磁无泄漏阀插装阀 （先导式）

Description

先导式2/2通电磁提动阀，采用旋入式阀芯设计，用于符合ISO7789标准的腔体。 CB型在通电位置关闭，BC型在断电位置关闭。主活塞通过所施加的压力实际上是无泄漏地关闭的。在逆流方向，阀门在达到开启压力后打开。

Application

Wandfluh电磁提动阀阀芯适用于严密的关闭功能，如无泄漏的保持负载，夹紧和夹持具有决定性意义的场合。在钢制和铝制阀块中，有步骤工具可用于制造阀芯的定位孔（租赁或购买）。请参考注册表2.13中的数据表。

Key facts

电磁阀座的阀芯

  • 螺线管式

  • 先导式

  • 常开和常闭

  • 2/2-way

  • Qmax = 80 l/min

  • p max=350巴

WandfluhSVSPM22-BC-X5500.316SVSPM22-BC无线圈
WandfluhSVSPM22-BC-G24/MD500.3253SVSPM22-BC/MDU= 24 VDC
WandfluhSVSPM22-BC-R230/MD500.3128SVSPM22-BC/MDU= 230 VAC
WandfluhSVSPM22-BC-G24/MD-HZ500.3312SVSPM22-BC/MD-HZU= 24 VDC
WandfluhSVSPM22-BC-G48/MD-HZ500.345SVSPM22-BC/MD-HZU= 48 VDC
WandfluhSVSPM22-BC-G24/MD-HZZ604500.3349SVSPM22-BC/MD-HZZ604U= 24 VDC
WandfluhSVSPM22-BC-G24/MD-Z604500.3365SVSPM22-BC/MD-Z604U= 24 VDC
WandfluhSVSPM22-BC-G24/ML500.3219SVSPM22-BC/MLU= 24 VDC
WandfluhSVSPM22-BC-G24/MX-M35/209a500.3348SVSPM22-BC/MX-M35/209aU= 24 VDC
WandfluhSVSPM22-BC-G24/WD500.3078SVSPM22-BC/WDU= 24 VDC
WandfluhSVSPM22-BC-G24/WD-D1500.3228SVSPM22-BC/WD-D1U= 24 VDC
WandfluhSVSPM22-BC-G24/WD-HZ500.3438SVSPM22-BC/WD-HZU= 24 VDC
WandfluhSVSPM22-BC-G24/WD-HZK500.3366SVSPM22-BC/WD-HZKU= 24 VDC
WandfluhSVSPM22-BC-G24/WG500.3335SVSPM22-BC/WGU= 24 VDC
WandfluhSVSPM22-CB-X5500.3161SVSPM22-CB无线圈
WandfluhSVSPM22-CB-G125/MD500.3364SVSPM22-CB/MDU= 125 VDC
WandfluhSVSPM22-CB-G24/MD500.3077SVSPM22-CB/MDU= 24 VDC
WandfluhSVSPM22-CB-R230/MD500.3135SVSPM22-CB/MDU= 230 VAC
WandfluhSVSPM22-CB-G48/MD-HG500.3449SVSPM22-CB/MD-HGU= 48 VDC
WandfluhSVSPM22-CB-G24/ML500.322SVSPM22-CB/MLU= 24 VDC
WandfluhSVSPM22-CB-G24/ML-M35500.3469SVSPM22-CB/ML-M35U= 24 VDC
WandfluhSVSPM22-CB-G24/MX-M35/209a500.3304SVSPM22-CB/MX-M35/209aU= 24 VDC
WandfluhSVSPM22-CB-G12/WD500.329SVSPM22-CB/WDU= 12 VDC
WandfluhSVSPM22-CB-G24/WD500.3283SVSPM22-CB/WDU= 24 VDC
WandfluhSVSPM22-CB-G24/WD-D1500.3175SVSPM22-CB/WD-D1U= 24 VDC
WandfluhSVSPM22-CB-G24/WD-D1HB4,5500.3476SVSPM22-CB/WD-D1HB4,5U= 24 VDC
WandfluhSVSPM22-CB-G24/WD-HB4,5500.3443SVSPM22-CB/WD-HB4,5U= 24 VDC
WandfluhSVSPM22-CB-G24/WD-HG500.3353SVSPM22-CB/WD-HGU= 24 VDC
WandfluhSVSPM22-CB-G12/WG500.3381SVSPM22-CB/WGU= 12 VDC
WandfluhSVSPM22-CB-G24/WG500.3205SVSPM22-CB/WGU= 24 VDC
WandfluhSVSPM22-CB-X5-D1500.3157SVSPM22-CB-D1无线圈


SVSPM22-BC-G12/WD-_normally closed12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-G12/WD-D1normally closed12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-G12/WJ-_normally closed12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-BC-G12/WJ-D1normally closed12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-G12/WG-_normally closed12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-BC-G12/WG-D1normally closed12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-G12/MD-_normally closed12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-G12/MD-D1normally closed12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-G12/MJ-_normally closed12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-BC-G12/MJ-D1normally closed12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-G12/MG-_normally closed12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-BC-G12/MG-D1normally closed12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-G24/WD-_normally closed24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-G24/WD-D1normally closed24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-G24/WJ-_normally closed24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-BC-G24/WJ-D1normally closed24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-G24/WG-_normally closed24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-BC-G24/WG-D1normally closed24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-G24/MD-_normally closed24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-G24/MD-D1normally closed24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-G24/MJ-_normally closed24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-BC-G24/MJ-D1normally closed24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-G24/MG-_normally closed24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-BC-G24/MG-D1normally closed24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-R115/WD-_normally closed115 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-R115/WD-D1normally closed115 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-R115/WJ-_normally closed115 VACMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-BC-R115/WJ-D1normally closed115 VACMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-R115/WG-_normally closed115 VACMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-BC-R115/WG-D1normally closed115 VACMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-R115/MD-_normally closed115 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-R115/MD-D1normally closed115 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-R115/MJ-_normally closed115 VACMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-BC-R115/MJ-D1normally closed115 VACMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-R115/MG-_normally closed115 VACMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-BC-R115/MG-D1normally closed115 VACMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-R230/WD-_normally closed230 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-R230/WD-D1normally closed230 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-R230/WJ-_normally closed230 VACMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-BC-R230/WJ-D1normally closed230 VACMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-R230/WG-_normally closed230 VACMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-BC-R230/WG-D1normally closed230 VACMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-R230/MD-_normally closed230 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-R230/MD-D1normally closed230 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-R230/MJ-_normally closed230 VACMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-BC-R230/MJ-D1normally closed230 VACMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-R230/MG-_normally closed230 VACMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-BC-R230/MG-D1normally closed230 VACMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-X5/WD-_normally closedwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-X5/WD-D1normally closedwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-X5/WJ-_normally closedwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-BC-X5/WJ-D1normally closedwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-X5/WG-_normally closedwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-BC-X5/WG-D1normally closedwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-BC-X5/MD-_normally closedwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-BC-X5/MD-D1normally closedwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-BC-X5/MJ-_normally closedwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-BC-X5/MJ-D1normally closedwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-BC-X5/MG-_normally closedwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-BC-X5/MG-D1normally closedwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-G12/WD-_normally open12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-G12/WD-D1normally open12 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-G12/WJ-_normally open12 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-CB-G12/WJ-D1normally open12 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-G12/WG-_normally open12 VDCMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-CB-G12/WG-D1normally open12 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-G12/MD-_normally open12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-G12/MD-D1normally open12 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-G12/MJ-_normally open12 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-CB-G12/MJ-D1normally open12 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-G12/MG-_normally open12 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-CB-G12/MG-D1normally open12 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-G24/WD-_normally open24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-G24/WD-D1normally open24 VDCMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-G24/WJ-_normally open24 VDCMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-CB-G24/WJ-D1normally open24 VDCMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-G24/WG-_normally open24 VDCMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-CB-G24/WG-D1normally open24 VDCMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-G24/MD-_normally open24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-G24/MD-D1normally open24 VDCMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-G24/MJ-_normally open24 VDCMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-CB-G24/MJ-D1normally open24 VDCMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-G24/MG-_normally open24 VDCMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-CB-G24/MG-D1normally open24 VDCMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-R115/WD-_normally open115 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-R115/WD-D1normally open115 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-R115/WJ-_normally open115 VACMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-CB-R115/WJ-D1normally open115 VACMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-R115/WG-_normally open115 VACMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-CB-R115/WG-D1normally open115 VACMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-R115/MD-_normally open115 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-R115/MD-D1normally open115 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-R115/MJ-_normally open115 VACMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-CB-R115/MJ-D1normally open115 VACMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-R115/MG-_normally open115 VACMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-CB-R115/MG-D1normally open115 VACMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-R230/WD-_normally open230 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-R230/WD-D1normally open230 VACMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-R230/WJ-_normally open230 VACMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-CB-R230/WJ-D1normally open230 VACMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-R230/WG-_normally open230 VACMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-CB-R230/WG-D1normally open230 VACMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-R230/MD-_normally open230 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-R230/MD-D1normally open230 VACMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-R230/MJ-_normally open230 VACMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-CB-R230/MJ-D1normally open230 VACMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-R230/MG-_normally open230 VACMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-CB-R230/MG-D1normally open230 VACMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-X5/WD-_normally openwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-X5/WD-D1normally openwithout coilMetal housing roundConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-X5/WJ-_normally openwithout coilMetal housing roundConnector socket AMP Junior-TimerNBR
SVSPM22-CB-X5/WJ-D1normally openwithout coilMetal housing roundConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-X5/WG-_normally openwithout coilMetal housing roundConnector Deutsch DT04-2PNBR
SVSPM22-CB-X5/WG-D1normally openwithout coilMetal housing roundConnector Deutsch DT04-2PFKM (Viton)
SVSPM22-CB-X5/MD-_normally openwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400NBR
SVSPM22-CB-X5/MD-D1normally openwithout coilMetal housing, squareConnector socket EN 175301-803 / ISO 4400FKM (Viton)
SVSPM22-CB-X5/MJ-_normally openwithout coilMetal housing, squareConnector socket AMP Junior-TimerNBR
SVSPM22-CB-X5/MJ-D1normally openwithout coilMetal housing, squareConnector socket AMP Junior-TimerFKM (Viton)
SVSPM22-CB-X5/MG-_normally openwithout coilMetal housing, squareConnector Deutsch DT04-2PNBR
SVSPM22-CB-X5/MG-D1normally openwithout coilMetal housing, squareConnector Deutsch DT04-2PFKM (Viton)
